Model: COT150E

  • Linux Ready
  • Outdoor kiosks are used out door with some kinds of IP protection for explosure to sun light and other weather conditions.
  • Fanless

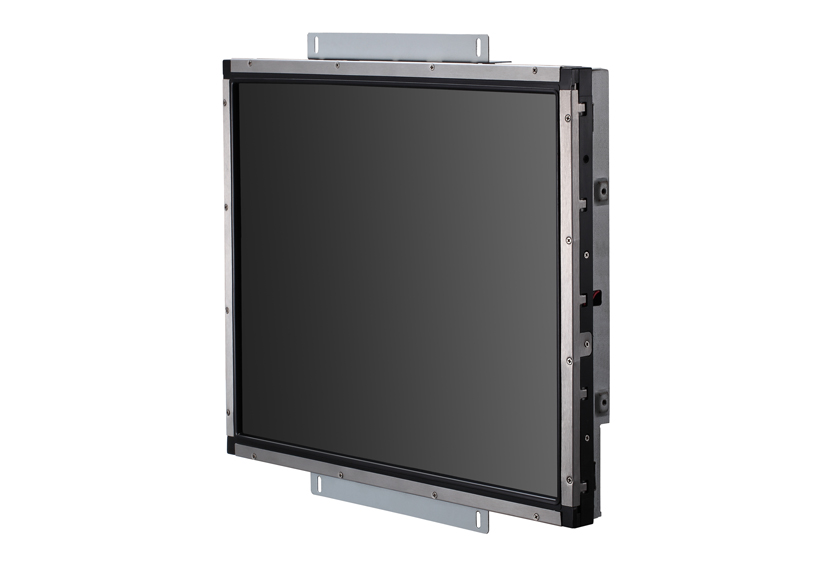

COT150E open frame SAW touchscreen monitor
COT150E open frame SAW touchscreen monitor

COT150E open frame SAW touchscreen monitor

MAIN FEATURES

  • Linux Ready

    Linux is a set of free Unix operating system, which is based on and similar to POSIX and UNIX.

  • Outdoor

    Outdoor kiosks are used out door with some kinds of IP protection for explosure to sun light and other weather conditions.

  • touchscreen

    Touchscren is well known high-tech electronics, A touchscreen is an electronic visual output that can detect the presence and location of a touch within the display area.

  • Fanless

    A fanless box IPC is a computer that uses a passive cooling system to dissipate heat, instead of an internal fan which will generate new problem when solved one or not.

  • COT150E is an open frame SAW touchscreen monitor.

    OEM/ODM is welcome.




  • Configurations

    • COT150E SAW touchscreen monitor Specifications

      Item Parameter
      Model COT150E
      Display Type 15?Active Matrix TFT LCD
      Case/Bezel Color Black
      Body Stand No Stand
      Aspect Ratio 4:3
      Active Display Area LCD Panel: 304.128mm(H) ?228.096mm(V)
      Native Resolution (Typ.) 1024 ?768 @ 60 Hz
      Other Supported Resolutions 640 ?480 @ 60 / 72 / 75 Hz
      - 640 ?480 @ 67 Hz
      - 720 ?400 @ 70 Hz
      - 800 ?600 @ 56 / 60 / 72 / 75 Hz
      - 832 ?624 @ 75 Hz
      - 1024 ?768 @ 60 / 70 / 75 Hz
      Pixel Response Time (Typ.) 8 ms
      Colors 16.2 million
      Brightness (Typ.) LCD Panel: 250 cd/m2
      Contrast Ratio (Typ.) 500:1
      Viewing Angle (Typ.) Horizontal (left/right): 150?(75?75?
      - (from centre, CR>10) Vertical (up/down): 130?(70?60?
      Input Video Format RGB Analog
      Input Video Signal Connector VGA
      Input Frequency Horizontal: 30 to 82 kHz
      - Vertical: 50 to 75 Hz
      Touch Technology Surface Acoustic Wave (SAW)
      Touch Interface Serial RS232 / USB
      Touch Response Time SAW: 10.4 ms
      On Screen Display (OSD) Control (back): Menu, Up, Down, Auto, Power
      On Screen Display (OSD language) Simplified Chinese, traditional Chinese, English,
      - French, Italian, Spanish, German, Japanese, Korean
      Power Supply External Adapter: 100-240 VAC, 50-60 Hz
      - Input Voltage Range: +12VDC ?%
      Input Connector DC: Coaxial power jack (2.5 mm pin diameter, 5.5 mm
      - barrel diameter, 11.5 mm barrel length)
      Power Consumption (Max) 2CCFL: 30 W/LED: 25 W
      Monitor Dimensions 336mm(W) ?264mm(H) ?43.8mm(D)
      Shipping Carton Dimensions 441mm(W) ?360mm(H) ?188mm(D)
      Weight Monitor:3.0 kg
      - Shipping package (Approximately): 4.5 kg
      Mounting Options Side Mount, VESA Mount 75 mm & 100 mm
      Sealing Touchscreen sealed to bezel
      - Touchscreen sealed to LCD panel
      Temperature Range Operating: 0癈 to 40癈 (32癋 to 104癋)
      - Storage: -20癈 to 60癈 (-4癋 to 140癋)
      Relative Humidity (Non Condensing) Operating: 20%-80%
      - Storage: 10%-90%
      Warranty Touch panel: 3 years
      LCD panel: 1 year
      MTBF: 50,000 hours demonstrated
      (Backlight Lamp Life, Hrs to 1/2 brightness)
