ZKTEK provides all kinds of custom OEM/ODM ATM,interactive kiosk,information kiosk, touchscreen kiosk, touchscreen monitor, touchscreen computer, box ipc,digital sginages, pos and metal keyboard products

Model: AD16

  • Linux Ready
  • Cash validation is a very useful function for the kiosks to collect the money for the services.
  • The UPS is the backup power supply for the kiosks especially used for payment transaction.
  • Rugged kiosk is used for the applications which needs high quality kiosks.
AD16 dusal screen selfservice touchscreen payment kiosk with card dispenser, bank card reader, cash validator and ticket printer
AD16 dusal screen selfservice touchscreen payment kiosk with card dispenser, bank card reader, cash validator and ticket printer

AD16 is a dusal screen selfservice touchscreen payment kiosk with card dispenser, bank card reader, cash validator and ticket printer

MAIN FEATURES

  • Linux Ready

    Linux is a set of free Unix operating system, which is based on and similar to POSIX and UNIX.

  • touchscreen

    Touchscren is well known high-tech electronics, A touchscreen is an electronic visual output that can detect the presence and location of a touch within the display area.

  • Cash

    Cash validation is a very useful function for the kiosks to collect the money for the services.

  • UPS

    The UPS is the backup power supply for the kiosks especially used for payment transaction.

  • Rugged kiosk

    Rugged kiosk is used for the applications which needs high quality kiosks.

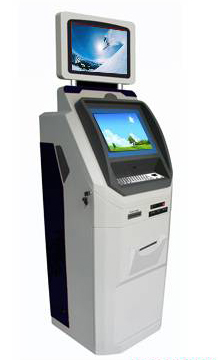

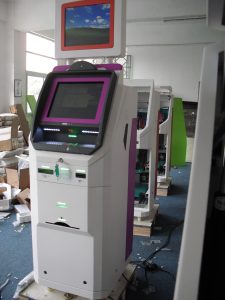

  • The AD16 is a dual screen automated self service payment and ticket kiosk including one 17/19" touchscreen for all kinds of applications. With a dual screen bulky enclosure of high reliability cash validator, photo printer, receipt printer, EPP, credit/debit card reader, barcode reader, UPS and a lot of more useful devices combo, AD16 is the versatile kiosk for all kinds of payment and ticket applications.

    As the most popular model, AD16 has been developed into several sub-models for the project-oriented solutions. By adopting the most up-to-date technology and powerful high performance industrial computer for 24/7 use, The bulky dual screen touch screen kiosk is design to cater the increasing demand of the bank payment, hotel checkin, museum card dispensing, supermarket customer service, photo printing shop, theater ticket vending, library book recycle and other indoor places for the featured easy-to-use easy-to-operate account management kiosks. The bank owners will benefit from the multi-functional ways to quickly and conveniently manage the account and print the bank pass book with the high reliability kiosk solution in compact and sturdy design at a reasonable cost.

    Now, AD16 features the most latest technologies:

    •  Easy to use design with air-spring and drawers
    •  The complete clean and smooth front interface with projective capacitive touchscreen monitors(optional)
    •  The state of art design and good finishing of outlook surface
    •  High reliable industrial computer with the latest HASWELL server technology
    •  Embedded high-speed high-reliability cash acceptor
    •  Hybrid motorised 3-in-1 bank card reader
    •  Durable and high speed thermal printer
    •  Optional SIM socket for cellular radio 4G/LTE connectivity
    •  Optional bulky components such as change giver and A4 laser printer for list printing

    AD16 is the accoutable solution for the high foot traffic and high quality service banks in 24/7 work-time. With ZKTEK, you will have the tools and support you need for a successful self service automated bank kiosk.

    OEM/ODM/BRANDING are also welcome.

    Applications:

    • Billing Kiosk
    • Marketing Kiosk
    • Music Download Kiosk
    • Multimedia Kiosk
    • On-Line Banking Kiosk
    • Order Entry Kiosk
    • Bespoken Kiosk



    • Prepaid Kiosk
    • Redemption Kiosk
    • Retail Kiosk
    • Security Kiosk
    • Self-Service Kiosk
    • Ticketing Kiosk
    • Tourism Kiosk



    • Trade Show Kiosk
    • Payment Kiosk
    • Check In Kiosk
    • Custom Kiosks
    • Directory Wayfinder Kiosk
    • Employee Self-Service Kiosk
    • Gaming Kiosk



    • Gift Registry Kiosk
    • HR Kiosk
    • Identification Verification Kiosk
    • Information Kiosk
    • Interactive Kiosk
    • Internet Kiosk
    • Internet Pay For Use Kiosk



    • Kiosk OEM
    • Kiosk ODM



  • Configurations

    • Barcode ticket kiosk with 2D barcode scanner N5680 Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-X1265LV3 CPU Intel XEON E3-1265L V3.0 , quad core 3.7GHz, 5GT/s FSB
      Video core Integrated Intel?HD Graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5" hard driver)
      Touchscreen ZKTEK C1710S Type 17 inch SAW touchscreen
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      - antirust, anti-acid, anti-dust
      Thickness 6mm
      Resolution 4096x1096
      Light Transmission 90%-92%
      Surface Hardness Mohs
      Touch force <100g
      Response Time 16ms
      Interface USB
      LCD LG L173L Type 17 inch TFT LCD
      Brightness 300cd/m2
      Contrast 2000:1
      Max(native). resolution 1024*768
      Response Time 6ms
      Dot pitch 0.197
      Interface LVDS,VGA or DVI
      Touchscreen ZKTE C1910C Type 19 inch capacitive touchscreen
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      - antirust, anti-acid, anti-dust
      Thickness 6mm
      Resolution 4096x1096
      Light Transmission 90%-92%
      Surface Hardness Mohs
      Touch force <100g
      Response Time 16ms
      Interface USB
      Label Printer ZKTEK TSC240 Printer type Desktop thermal label and 1D &2D barcode printer
      Printer mode Thermal and thermal transfer
      Paper roll 5"(127mm) max
      Paper roll core diameter 1.0 "(25.4mm)~1.5"(38mm)
      Paper thickness 0.003"(0.8mm)~0.007"(0.18mm)
      Print width 25-108mm(1-4.25") ;
      Print length 991mm; rail size: 0.585"(15mm)
      Print Speed 6.0" (152 mm)/sec
      Resolution 203 dpi ,
      Language TSPL and ZPL
      Power 100-240 VAC,50-60 Hz
      Interface USB/LAN/RS232/LPT optional
      Dotmatrix Printer ZKTEK P76T Printer type Dotmatrix stylus rinter
      Width 76mm
      Paper roll diameter 160mm
      Print Speed 80mm/s
      Sensors Automatic cutter;out alarm/to be run out alarm,Jam
      Temperature 5-35C
      RH 15%-85% NC
      Reliability MTBF>=10000
      MTTR <=30min
      Compatibility Support IBM and OKI simulation
      Interface LPT,RS232 or USB
      Barcode Scanner HONEYWELL N5680 Decoding capability Read almost all formats of 1D and 2D barcode
      Scan width(degree) +/-40 degree Scan angle: 360 degree Movement tolarence
      Minimium size 6.60 mil (PDF 417)
      Interface RS232/USB
      Power supply 5V or over USB
      Brand HONEYWELL
      Movement tolarence 4 inch/second
      OS Microsoft Windows 7 Ult 64bit Version Windows 7 Ult
      - 64bit
      Enclosure ZKTEK A Type of enclosure Wall through durable all-steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      4G HUAWEI ME909u-521 Band type FDD LTE Embedded Module
      Interface Mini PCIe

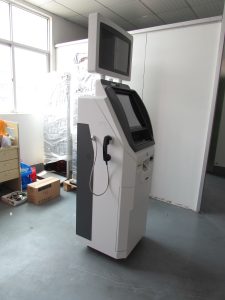

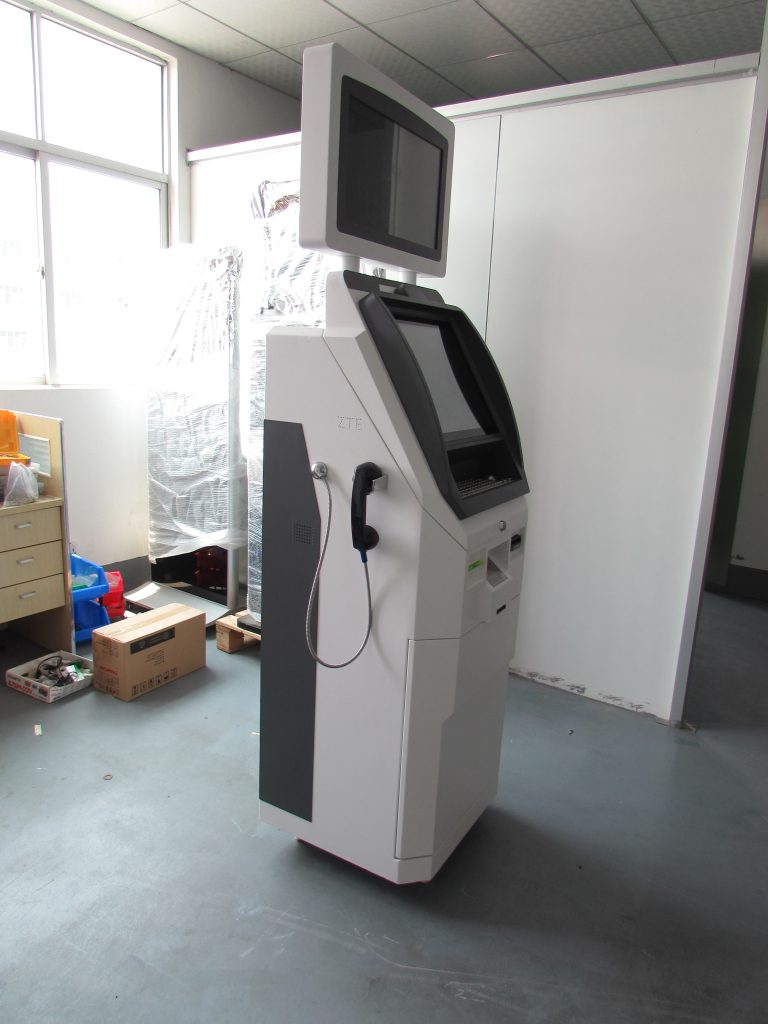

      Handset ZKTEK HS1 Handset type Vandalism-resistance handset with metal cable
      - With fork
      UPS SANTAK K1000PRO Voltage range 170V~255VAC
      Power Rate 1000VA/600W
      Capacity 12VV/60WX1
      Transfergap 6ms;
      Overload power 1000W
      Self-protection overload protection;Error led alert; RJ45/RJ11
      Interface USB/RS-232
      Camera ZKTEK PHC1 Camera Type CMOS
      Resolution 2MP active pixels
      Functions Auto-focus
      Interface USB2.0 High Speed(EHCI)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
      Package ZKTEK Crate Material Plywood crate
      Wrapper Film
      Foam (only corners)
    • Dualscreen Dye-sublimation photo printing kiosk Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-X1265LV3 CPU Intel XEON E3-1265L V3.0 , quad core 3.7GHz, 5GT/s FSB
      Video core Integrated Intel?HD Graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5" hard driver)
      LCD LG L229H Type 22 inch TFT LCD
      Brightness 300cd/m2
      Contrast 2000:1
      Max(native). resolution 1920x1080(HD)
      Response Time 6ms
      Dot pitch 0.197
      Interface LVDS,VGA or DVI
      Touchscreen Monitor ZKTEK C191 Touch technology 19 inch projective capacitive touch
      Multi-touch points 1
      LCD display Resolution 1280x1024(LCD)
      Touch screen Resolution 4096x4096
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      Thickness 6mm;
      Protection Vandalism proof, antirust, anti-acid, anti-dust
      Surface Hardness Mohs
      Touch force <100g; Response Time:16ms; Agency Approval:CE, FCC
      Impact protection Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
      Interface: USB
      Power supply (over USB)
      MTBF >50000 hrs
      Light Transmission 90%~92%
      Thermal Printer ZKTEK JP80T Printer Type List Themal Printer with long duration thermal paper printing ability
      Paper width 80mm
      Paper roll diameter 120mm, retracted log paper: 120mm
      Paper thickness 60 to 120g/m2
      Print Speed 150mm/s
      Print resolution 203 dpi (8 dots/mm)
      Sensors Automatic cutter only;out alarm/to be run out alarm,Jam
      Power supply 24VDC5A
      Interface RS232 / USB / Ethernet
      Dye-sublimation Printer MITSUBISHI CP9810DW-C Printer Type Dye Sublimation
      Speed 8.0 S /15cm x 10cm ( 6?* 4?)
      Size 3.5'?' ~ 6'?'
      Quality 300.5 DPI( bi-line ), 256 bite, 16.7m color
      Capacity 600 sheets/roll, 15cm x 10cm ( 6?* 4?)
      Dimension (W*D*H) 329mmx404mmx383mm
      Weight 21 KG (Ribbons and papers excluded)
      PowerSupply AC 220-240 V 50/60 Hz
      Interface USB2.0 (High Speed)
      Card Reader CREATOR CRT310 Type Hibrid motorised automatic card reader:magnetic, smart IC card and RFID
      - With shutter(optional)
      Magnetic card ISO/IEC 7811 JIS X6301/6302 tr1&2&3 read
      IC card ISO/IEC 7816 JIS X6303 read/write
      RFID(contactless) card ISO 7816 read/write
      - ISO/IEC 15693(NFC)
      Standards EMV Ver.4.0 compliant for IC and magnetic card
      Interface USB/RS-232
      Memory card reader ZKTEK EX-5 Type of reader Hybrid memory card reader
      Support CF/ CF II/ MD/ MS/ MS-PRO/ MS-DUO/
      - MS-MG/ MS-PRO-MG/ MS-ROM/ SD/ RS-MMC/ Mini-SD
      - MS-PRO-DUO/ T-Flash/ SM Cards/ MMC/ MMCII etc
      Read speed 480Mbps
      write speed 480Mbps
      OS System: XP, WIN7, Linux2.6.X MacOS10.0
      Interface USB2.0
      Metal EPP ZKTEK MKP2910 Type 3DES encrypted EPP
      - Waterproof 16 keys stainless steel metal keypad
      Keys laser print or chemical etch keys filled with color ink
      Super durability over 2,000,000 times with 0.45mm knock gap
      Press strength 2N with temperature range -40℃~65℃
      Standards Compatible with CE, RoHS, FCC
      Interface RS-232 + USB or USB
      Bill Acceptor MEI SCL83 Bill validation width 62-85mm(W)
      Validation rate 98% or greater
      Validation speed Approximately 3 seconds to stack
      Note insertion directions Note Insertion - up to 46 notes
      Validation scan scans 100% of both faces of each bill using six wavelengths
      Cassette Up to 1200 street-grade notes(SCL83)
      Bezel Options General
      Escrow One note
      Language protocol EBDS
      Operation temeprature 0-60 Cel
      Operation humidity 5%-95%
      Gross weight(with cashbox) 5.5KG
      Interface RS232
      Power Supply 12V to 24V dc
      Metal Keyboard ZKTEK MKT2752 Type 64Keys stainless steel metal leyboard with trackball(IP65 NEMA 4X);
      Faceplate: 372*102mm
      Trackball Diameter 38mm
      Lettering Sunk laser legends & characters in high quality ink
      Switch life more than 2 million of operations
      Standards Compatible with CE, RoHS, FCC
      Layout Internet -English(EN04), customizable for all languages
      Interface USB
      Biometric ZKTEK URU4500 Resolution 500dpi@8bit per pixel
      Speed AuthenticationTime<1s
      Processor 400 MHz DSP;FingerPrint Area:14.2*0.4mm
      Enrollment Time 850 msec
      Interface USB/RS232
      OS Microsoft Windows 7 Ult 32bit Version Windows 7 Ult
      - 32bit
      Power Supply ZKTEK HF150 Power rate 150W
      Power output 24VDC5A
      Power input 100/240V AC @2A
      Card Dispenser CREATOR CRT531 Dispenser type Friction dispense
      Card quantity Approx 60~300 cards
      Material Polyester Film Card;
      Thickness 0.2mm [min] ~ 2.0mm[max]
      Width 47.5 ~ 58.5 ?0.5mm; Length:76 ~ 98.5 ?0.5mm
      Card Dispensing Time Approx. 1.5 seconds.
      Card Escrow 38pcs?pcs, card to be end: 7~50pcs?pcs
      Sensor Card empty sensor
      Power 24VDC
      Interface USB or RS232
      Card Reader ACS ACR122 Card frequency 13.56 MHz
      Card type FeliCa and ISO 14443 standard A/B card
      - MIFARE (Classics, DESFire)
      - Compliant with ISO/IEC18092 (NFC)
      Speed 212 Kbps~ 242Kbps
      Max Range 100 mm
      Certificate CE, FCC, RoHS Compliant
      Interface USB2.0
      Handset ZKTEK HS1 Handset type Vandalism-resistance handset with metal cable
      - With fork
      UPS SANTAK K1000PRO Voltage range 170V~255VAC
      Power Rate 1000VA/600W
      Capacity 12VV/60WX1
      Transfergap 6ms;
      Overload power 1000W
      Self-protection overload protection;Error led alert; RJ45/RJ11
      Interface USB/RS-232
      Camera ZKTEK PHCOV5MP Camera Type CMOS
      Resolution 5MP active pixels
      Functions Auto-focus
      Interface USB2.0 High Speed(EHCI)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
      Package ZKTEK Crate Material Plywood crate
      Wrapper Film
      Foam (only corners)
      Enclosure ZKTEK AD Type of enclosure Dualscreen durable all-steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
    • Photo&payment kiosk with photo printer and MEI cash acceptor Specifications

      Name Model Item Parameter
      OS Microsoft Windows 7 Ult 64bit Version Windows 7 Ult
      - 64bit
      Touchscreen ZKTEK C1710S Type 17 inch SAW touchscreen
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      - antirust, anti-acid, anti-dust
      Thickness 6mm
      Resolution 4096x1096
      Light Transmission 90%-92%
      Surface Hardness Mohs
      Touch force <100g
      Response Time 16ms
      Interface USB
      Host PC ZKTEK TN-X1265LV3 CPU Intel XEON E3-1265L V3.0 , quad core 3.7GHz, 5GT/s FSB
      Video core Integrated Intel?HD Graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5" hard driver)
      LCD LG L173L Type 17 inch TFT LCD
      Brightness 300cd/m2
      Contrast 2000:1
      Max(native). resolution 1024*768
      Response Time 6ms
      Dot pitch 0.197
      Interface LVDS,VGA or DVI
      Thermal Printer CUSTOM TG2480H Printer Type Themal Printer,
      Paper width 80mm
      Paper roll diameter 180mm
      Paper thickness 60 to 120g/m2
      Print Speed 220mm/s
      Print resolution 203 dpi (8 dots/mm)
      Sensors Automatic cutter only;out alarm/to be run out alarm,Jam
      Power supply 24VDC5A
      Interface RS232 / USB / Ethernet
      Dye-sublimation Printer MITSUBISHI CP9810DW-C Printer Type Dye Sublimation
      Speed 8.0 S /15cm x 10cm ( 6?* 4?)
      Size 3.5'?' ~ 6'?'
      Quality 300.5 DPI( bi-line ), 256 bite, 16.7m color
      Capacity 600 sheets/roll, 15cm x 10cm ( 6?* 4?)
      Dimension (W*D*H) 329mmx404mmx383mm
      Weight 21 KG (Ribbons and papers excluded)
      PowerSupply AC 220-240 V 50/60 Hz
      Interface USB2.0 (High Speed)
      Card Reader ZKTEK R100 Reader tracks tr1&2&3 read
      Reader type Manual swipe card reader for magnetic cards
      Magnetic card ISO/IEC 7811 JIS X6301/6302
      Interface USB/RS-232
      Metal EPP ZKTEK MKP2910 Type 3DES encrypted EPP
      - Waterproof 16 keys stainless steel metal keypad
      Keys laser print or chemical etch keys filled with color ink
      Super durability over 2,000,000 times with 0.45mm knock gap
      Press strength 2N with temperature range -40℃~65℃
      Standards Compatible with CE, RoHS, FCC
      Interface RS-232 + USB or USB
      Bill Acceptor MEI SCL83 Bill validation width 62-85mm(W)
      Validation rate 98% or greater
      Validation speed Approximately 3 seconds to stack
      Note insertion directions Note Insertion - up to 46 notes
      Validation scan scans 100% of both faces of each bill using six wavelengths
      Cassette Up to 1200 street-grade notes(SCL83)
      Bezel Options General
      Escrow One note
      Language protocol EBDS
      Operation temeprature 0-60 Cel
      Operation humidity 5%-95%
      Gross weight(with cashbox) 5.5KG
      Interface RS232
      Power Supply 12V to 24V dc
      Barcode Scanner HONEYWELL N5680 Decoding capability Read almost all formats of 1D and 2D barcode
      Scan width(degree) +/-40 degree Scan angle: 360 degree Movement tolarence
      Minimium size 6.60 mil (PDF 417)
      Interface RS232/USB
      Power supply 5V or over USB
      Brand HONEYWELL
      Movement tolarence 4 inch/second
      Metal Keyboard ZKTEK MKT2752 Type 64Keys stainless steel metal leyboard with trackball(IP65 NEMA 4X);
      Faceplate: 372*102mm
      Trackball Diameter 38mm
      Lettering Sunk laser legends & characters in high quality ink
      Switch life more than 2 million of operations
      Standards Compatible with CE, RoHS, FCC
      Layout Internet -English(EN04), customizable for all languages
      Interface USB
      Biometric ZKTEK URU4500 Resolution 500dpi@8bit per pixel
      Speed AuthenticationTime<1s
      Processor 400 MHz DSP;FingerPrint Area:14.2*0.4mm
      Enrollment Time 850 msec
      Interface USB/RS232
      Power Supply ZKTEK HF150 Power rate 150W
      Power output 24VDC5A
      Power input 100/240V AC @2A
      Card Dispenser CREATOR CRT531 Dispenser type Friction dispense
      Card quantity Approx 60~300 cards
      Material Polyester Film Card;
      Thickness 0.2mm [min] ~ 2.0mm[max]
      Width 47.5 ~ 58.5 ?0.5mm; Length:76 ~ 98.5 ?0.5mm
      Card Dispensing Time Approx. 1.5 seconds.
      Card Escrow 38pcs?pcs, card to be end: 7~50pcs?pcs
      Sensor Card empty sensor
      Power 24VDC
      Interface USB or RS232
      4G HUAWEI ME909u-521 Band type FDD LTE Embedded Module
      Interface Mini PCIe
      Handset ZKTEK HS1 Handset type Vandalism-resistance handset with metal cable
      - With fork
      UPS SANTAK K1000PRO Voltage range 170V~255VAC
      Power Rate 1000VA/600W
      Capacity 12VV/60WX1
      Transfergap 6ms;
      Overload power 1000W
      Self-protection overload protection;Error led alert; RJ45/RJ11
      Interface USB/RS-232
      Camera ZKTEK PHCOV5MP Camera Type CMOS
      Resolution 5MP active pixels
      Functions Auto-focus
      Interface USB2.0 High Speed(EHCI)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
      Package ZKTEK Crate Material Plywood crate
      Wrapper Film
      Foam (only corners)
  • Downloads

  • News

Leave a message:

Feed back

*
*


*

By tick this checkbox, I agreed to receive the information regarding this message from ZKTEK by any means.
By tick this checkbox, I agreed to the Terms of use of ZKTEK.*
