👉 Dual-layer Safe within Compact High Capacity Cash Exchange ATM with cash safe, coin hopper, cash acceptor and cash dispenser
A22 is a compact(60x70x129cm) high capacity cash exchange ATM with coin hopper, cash acceptor and cash dispenser.
YOUR DELIVERED PRICE:
$8900
$6800
Act now to save 24%!
STOCK:
5 units available
SKU:
A22
MOQ:
1 units
Lead Time:
30 days
Payment:
T/T in advance
×
Click anywhere to close
Product Overview
The A22 is a compact(60x70x129cm) high capacity cash exchange ATM with cash safe, coin hopper, cash acceptor and cash dispenser.
A22 allows convenient, real-time presenting of cash exchange giving in cash notes and coins and collect the bank notes with 8mm Q345 steel safe box and digital locks.
Industry professionals recognize the A22 as a dependable and trustworthy handy solution for demanding cash exchange handling applications requiring safe and large amount high capacity cash handling.
4
4
2
2
5
5
1
Mini safe for the cash dispenser
2
Sleek design
3
Native spiral shutter combo
4
EAA&ADA compliant
5
Compact design
6
Security locks(digit lock optional)
3
3
1
1
6
6
Applications
Technical Specifications
Dimensions

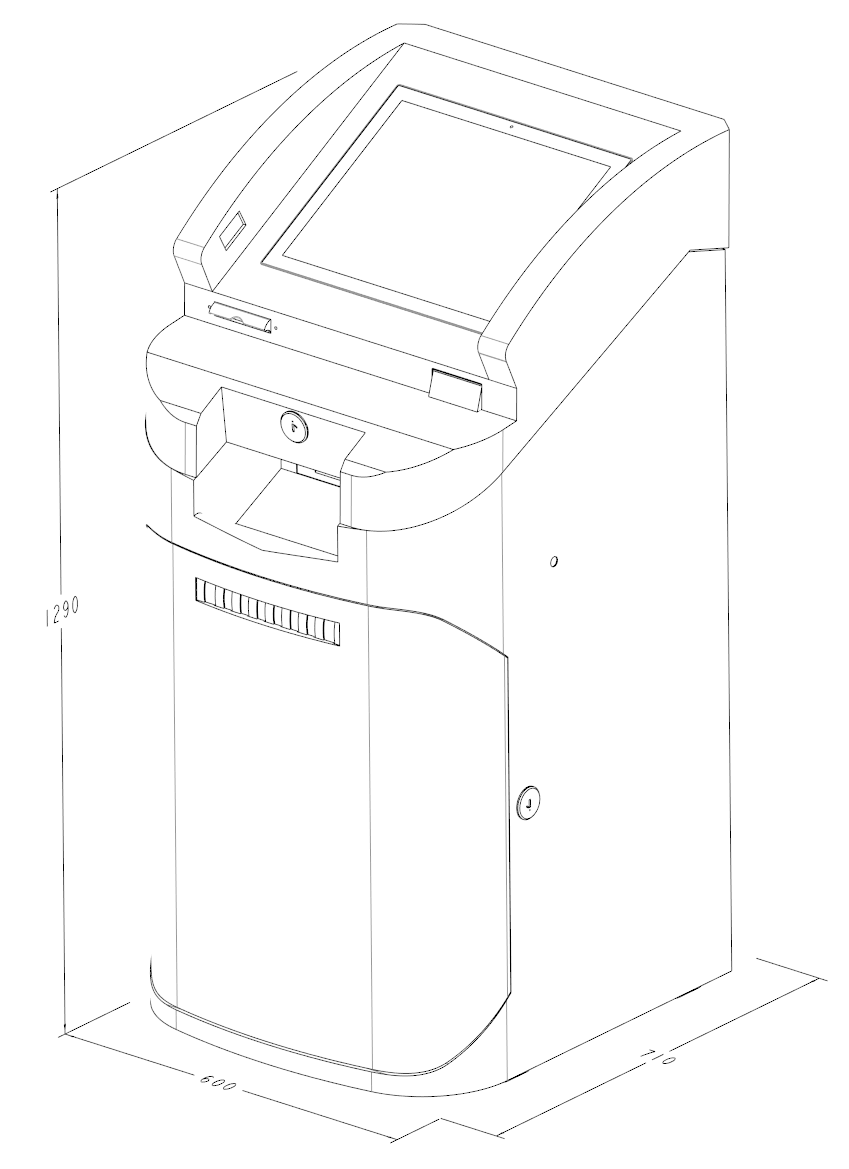

(W × D × H) 60 cm × 71 cm × 129 cm(131 with rubber feet) / 23.6" × 28.0" × 50.8" (51.6" with rubber feet)
Weight
NW/GW 106/162 kg
Power Supply
110-240V AC 50/60Hz
Operating Temperature
5°C to 50°C
Storage Temperature
0°C to 60°C
Humidity Range
10% to 90% RH
Certifications
CE, FCC, RoHS
Warranty
1 Year
Material
Zinc-Coated Electrolytic Galvanized Steel Sheet (SECC)
Color Options
Black, White, Silver and any
Detailed Information
| Group | Item | Value |
|---|---|---|
| Chassis | Mounting | Desktop / Embedded |
| Motherboard | CPU | Integrated ${mb_cpu} dual-core, 4-thread, TDP 15W |
| Graphics | Integrated Intel (R) HD Graphics 620, supports 4K | |
| Memory | 2*DDR4 SODIMM slots, 2133MHz, up to 32GB | |
| Front Panel IO | Power | 1*Power button, 1*one-key restore, 1*AC loss (power-on boot DIP switch) |
| LED | 1*Power LED, 1*HDD LED | |
| USB | 3*USB2.0, 1*internal USB2.0 | |
| Terminal | 1*12-pin (4 in / 4 out GPIO, switch, 5V) | |
| PS2 | 1*PS/2 | |
| SIM | 1*SIM slot | |
| Rear Panel IO | Display | 1*VGA (1920x1200@60Hz), 1*HDMI1.4 (4096*2304@24Hz) |
| LAN | 3*Intel (R) I210AT Gigabit NICs, supports Wake-on-LAN, PXE | |
| USB | 4*USB3.0 | |
| COM | 6*RS232/485 DB9, COM5-6 supports CAN output (requires CAN module) | |
| Audio | 1*Line out, 1*MIC | |
| Power | 1*DC power jack or 1*3-pin terminal, supports 9~36V input | |
| Storage | SATA | 1*2.5-inch drive bay |
| mSATA | 1*mSATA | |
| Storage Temperature | -20C to 70C | |
| Product Storage Temp Min | -10°C | |
| Product Storage Temp Max | 60°C | |
| Expansion | Mini PCIe | 1*Mini PCIe, supports 4G module |
| M.2 | 1*M.2/WiFi, Key-E 2230, WiFi module | |
| System Support | Microsoft Windows | Windows 7 |
| Linux | Ubuntu | |
| Watchdog | Hardware watchdog reset (256 levels, 0-255 seconds) | |
| Power Requirements | Power Type | External power adapter or open-frame power supply |
| Input Voltage | 9V~36V wide input | |
| Output Power | 60W~180W | |
| Product Power Consumption | 310W | |
| Environment | Operating Temperature | -10C to 50C |
| Relative Humidity | 5%-95% RH, non-condensing | |
| Operating Vibration | 0.5g rms / 5-500Hz / random / operating | |
| Availability | Product Availability | In Stock |
| Product Lead Time | 10-30 Business Days | |
| Product Shipping Weight | 0 kg | |
| Product Shipping Dimensions | (L x W x H) cm | |
| Product Dimensions | (W x D x H) 60 cm × 71 cm × 129 cm | |
| Additional Information | Product Origin Country | China |
| Compliance & Certifications | Product Ce Mark | Yes |
| Product Fcc Cert | Yes | |
| Product Rohs Compliant | Yes | |
| Product Iso Cert | ISO 9001:2015 | |
| Product Compliance Docs | Available upon request | |
| Product Interference Rating | Class A | |
| Product Network Interface | Gigabit Ethernet/WIFI/4G | |
| Product Audio Interface | 3.5mm Audio Jack | |
| Product Included Accessories | Keys, Power cable, Documentation | |
| Product Optional Accessories | Ventilation fans, Rubber feets, Flying case | |
| Product License | Perpetual license for hardware, no software | |
| Performance | Product Operating Voltage | 110-240V AC |
| Product Operating Frequency | 50-60Hz | |
| Product Noise Level | < 40dB | |
| Environmental | Product Operating Temp Min | 0°C |
| Product Operating Temp Max | 50°C | |
| Product Humidity Rating | 10% - 90% RH | |
| Physical | Product Material | SECC |
| Product Color | Black | |
| Product Finish | Matte / Glossy | |
| Product Weight | 106 kg | |
| Connectivity | Product Usb Ports | USB 3.0 x2, USB 2.0 x4 |
| Product Wireless | WiFi 6 (802.11ax) | |
| Product Video Output | HDMI 2.1 x1 | |
| Packaging | Product Packaging Type | Standard Box / Custom logo Box |
| Product Eco Friendly | Recyclable packaging | |
| Warranty & Support | Product Warranty Coverage | Parts & Labor |
| Legal | Product Return Policy | See terms of us |
| Product Legal Disclaimer | See terms of us |
Ordering Information
Minimum Order Quantity:
1
Lead Time:
30 days
Payment Terms:
T/T in advance
Bulk Discounts
- 10-50 units: 5%
- <100 units: 15%
- <1000 units: 20%
Delivery Options
- Sea freight/DDP(All in)
- Air freight/DDP(All in)
- Express/DDU(Tarrif excluded)
Variants
| No. | Model | Technology | Resolutions | Configurations | Arch. | GPIO | NET | COM | HDMI | VGA | USB | Power |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1 |
Notes
- 1) One-key restore and reset button are mutually exclusive. Default is one-key restore. Some CPUs do not support it. Contact FAE if reset is required; hardware change needed.
- 2) With C43 motherboard, the internal USB2.0 and 4G are mutually exclusive. Default is 4G.
Technical Documentation
Shipping Information
Weight:
0 kg kg
Dimensions:
(L x W x H) cm cm
Shipping Class:
Oversized
Free Shipping Threshold:
$15000
Special Handling Instructions
- No battery, no magnetic(No shipment safety issue)
- Over weight > 150KG per package
- HS CODE: 847090
