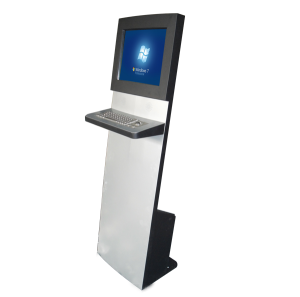

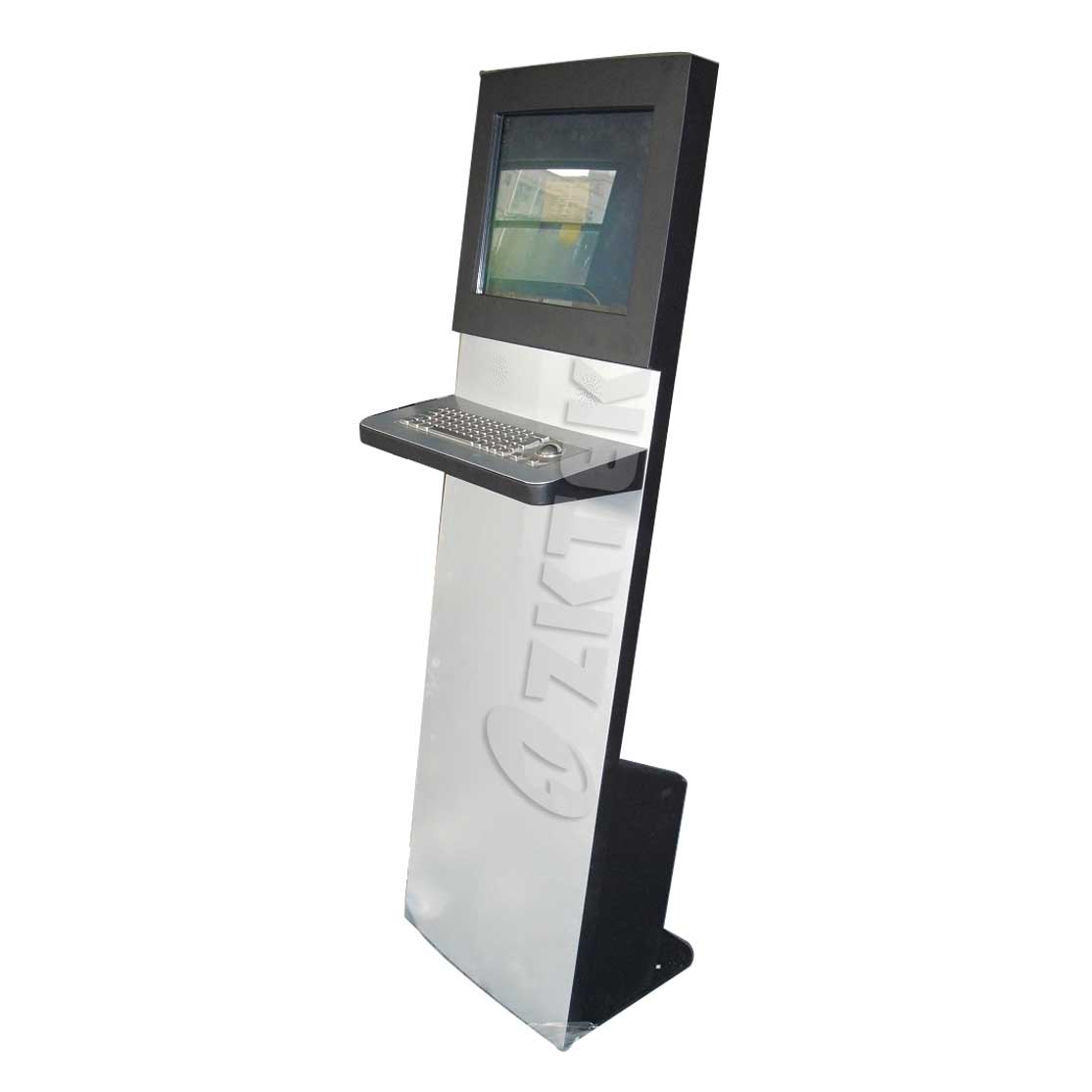

K1 internet kiosk with metal keyboard
Model: K1
K1 is an internet kiosk with metal keyboard
$650
MAIN FEATURES
Linux Ready Linux is a set of free Unix operating system, which is based on and similar to POSIX and UNIX.
Internet Web based internet access is used for the applications developped based on web browse and websites.
touchscreen Touchscren is well known high-tech electronics, A touchscreen is an electronic visual output that can detect the presence and location of a touch within the display area.
K1 is an internet kiosk with metal keyboard.
OEM/ODM is welcome.
Configurations
K1 metal keyboard kiosk with J1900 and MKT2752 Specifications
Name
Item
Parameter
Host PC
CPU
Onboard Intel bay trail dual-core J1800/J1900, dual core 2.41GHz~2.58GHz, 1333MHz FSB
Video core
Integrated Intel HD graphics graphic card support 1920*1080 full HD
RAM
1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
Storage
2* Serial ATA II, support 3Gb/s
-
500G HDD(legacy 2.5″ hard driver)
Touchscreen Monitor
Touch technology
19 inch projective capacitive touch
Multi-touch points
1
LCD display Resolution
1280x1024(LCD)
Touch screen Resolution
4096x4096
Durability
Scratch-free,More than 35,000,000 touches in one location without failure
Thickness
6mm;
Protection
Vandalism proof, antirust, anti-acid, anti-dust
Surface Hardness
Mohs
Touch force
<100g; Response Time:16ms; Agency Approval:CE, FCC
Impact protection
Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
Interface:
USB
Power supply
(over USB)
MTBF
>50000 hrs
Light Transmission
90%～92%
Metal Keyboard
Type
64Keys stainless steel metal leyboard with trackball(IP65 NEMA 4X);
Faceplate:
372*102mm
Trackball Diameter
38mm
Lettering
Sunk laser legends & characters in high quality ink
Switch life
more than 2 million of operations
Standards
Compatible with CE, RoHS, FCC
Layout
Internet -English(EN04), customizable for all languages
Interface
USB
Enclosure
Type of enclosure
Durable all-steel enlcosure
Type of paint
Powder coated front, powder coated steel back covers
Style
Ergonomically sleek and smart design
-
Easy to install and operate with internal drawers
Ventilation
Internal fans for ventilation
Protection
Security mechanic locks
Environment
Moistureproof,Antirust,Anti-acid,Static free
Wheels
(optional)
Audio
AUDIO
Stereo amplified speakers: dual channel 5W8Ohm
K1 touchscreen kiosk with J1900 Specifications
Name
Item
Parameter
Host PC
CPU
Onboard Intel bay trail dual-core J1800/J1900, dual core 2.41GHz~2.58GHz, 1333MHz FSB
Video core
Integrated Intel HD graphics graphic card support 1920*1080 full HD
RAM
1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
Storage
2* Serial ATA II, support 3Gb/s
-
500G HDD(legacy 2.5″ hard driver)
Touchscreen Monitor
Touch technology
17" projective capacitive touch
Multi-touch points
1
LCD display Resolution
1280x1024(LCD)
Touch screen Resolution
4096x4096
Durability
Scratch-free,More than 35,000,000 touches in one location without failure
Thickness
6mm; Resolution: 4096x 096; Light Transmission:90%～92%
Protection
Vandalism proof, antirust, anti-acid, anti-dust
Surface Hardness
Mohs
Touch force
<100g; Response Time:16ms; Agency Approval:CE, FCC
Impact protection
Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
Interface:
USB
Power supply
(over USB)
MTBF
>50000 hrs
Enclosure
Type of enclosure
Durable wall mounted all-steel enlcosure
Type of paint
Powder coated front, powder coated steel back covers
Style
Ergonomically sleek and smart design
-
Easy to install and operate with internal drawers
Ventilation
Internal fans for ventilation
Protection
Security mechanic locks
Environment
Moistureproof,Antirust,Anti-acid,Static free
Wheels
(optional)
Audio
AUDIO
Stereo amplified speakers: dual channel 5W8Ohm
