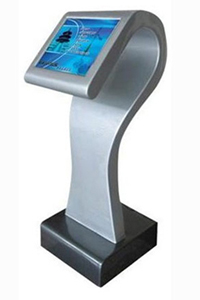

T1 touchscreen kiosk
Model: T1
T1 is a touchscreen kiosk
$650
MAIN FEATURES
Linux Ready Linux is a set of free Unix operating system, which is based on and similar to POSIX and UNIX.
Internet Web based internet access is used for the applications developped based on web browse and websites.
touchscreen Touchscren is well known high-tech electronics, A touchscreen is an electronic visual output that can detect the presence and location of a touch within the display area.
Rugged kiosk Rugged kiosk is used for the applications which needs high quality kiosks.
Multitouch Multitouch is the touchscreen with the multi touch points recognition simultaneously.
Projective capacitive touch Projective capacitive touch, also as projective-capacitance touch screen is the technology that use the reflective technology to install the capacitive sensors on the rear side.
T1 is a touchscreen kiosk for booking and ordering.
OEM/ODM is welcome.
Configurations
T series ordering kiosk with J1900 and 19 touchscreen monitor Specifications
Name
Item
Parameter
Host PC
CPU
Onboard Intel bay trail dual-core J1800/J1900, dual core 2.41GHz~2.58GHz, 1333MHz FSB
Video core
Integrated Intel HD graphics graphic card support 1920*1080 full HD
RAM
1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
Storage
2* Serial ATA II, support 3Gb/s
-
500G HDD(legacy 2.5″ hard driver)
Touchscreen Monitor
Touch technology
19 inch projective capacitive touch
Multi-touch points
1
LCD display Resolution
1280x1024(LCD)
Touch screen Resolution
4096x4096
Durability
Scratch-free,More than 35,000,000 touches in one location without failure
Thickness
6mm;
Protection
Vandalism proof, antirust, anti-acid, anti-dust
Surface Hardness
Mohs
Touch force
<100g; Response Time:16ms; Agency Approval:CE, FCC
Impact protection
Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
Interface:
USB
Power supply
(over USB)
MTBF
>50000 hrs
Light Transmission
90%～92%
Enclosure
Type of enclosure
Durable all-steel enlcosure
Type of paint
Powder coated front, powder coated steel back covers
Style
Ergonomically sleek and smart design
-
Easy to install and operate with internal drawers
Ventilation
Internal fans for ventilation
Protection
Security mechanic locks
Environment
Moistureproof,Antirust,Anti-acid,Static free
Wheels
(optional)
Audio
AUDIO
Stereo amplified speakers: dual channel 5W8Ohm
T series ordering kiosk with J1900 and 22 inch touchscreen monitor Specifications
Name
Item
Parameter
Host PC
CPU
Onboard Intel bay trail dual-core J1800/J1900, dual core 2.41GHz~2.58GHz, 1333MHz FSB
Video core
Integrated Intel HD graphics graphic card support 1920*1080 full HD
RAM
1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
Storage
2* Serial ATA II, support 3Gb/s
-
500G HDD(legacy 2.5″ hard driver)
Touchscreen Monitor
Touch technology
21.5 inch SAW touch
Multi-touch points
1
LCD display Resolution
1920x1080(LCD)
Touch screen Resolution
4096x4096
Durability
Scratch-free,More than 35,000,000 touches in one location without failure
Thickness
6mm; Resolution: 4096x096; Light Transmission:90%～92%
Protection
Vandalism proof, antirust, anti-acid, anti-dust
Surface Hardness
Mohs
Touch force
<100g; Response Time:16ms; Agency Approval:CE, FCC
Impact protection
Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
Interface:
USB
Power supply
(over USB)
MTBF
>50000 hrs
Enclosure
Type of enclosure
Durable all-steel enlcosure
Type of paint
Powder coated front, powder coated steel back covers
Style
Ergonomically sleek and smart design
-
Easy to install and operate with internal drawers
Ventilation
Internal fans for ventilation
Protection
Security mechanic locks
Environment
Moistureproof,Antirust,Anti-acid,Static free
Wheels
(optional)
Audio
AUDIO
Stereo amplified speakers: dual channel 5W8Ohm
T series ordering kiosk with J1900 and 17 touchscreen monitor Specifications
Name
Item
Parameter
Host PC
CPU
Onboard Intel bay trail dual-core J1800/J1900, dual core 2.41GHz~2.58GHz, 1333MHz FSB
Video core
Integrated Intel HD graphics graphic card support 1920*1080 full HD
RAM
1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
Storage
2* Serial ATA II, support 3Gb/s
-
500G HDD(legacy 2.5″ hard driver)
Touchscreen Monitor
Touch technology
17" projective capacitive touch
Multi-touch points
1
LCD display Resolution
1280x1024(LCD)
Touch screen Resolution
4096x4096
Durability
Scratch-free,More than 35,000,000 touches in one location without failure
Thickness
6mm; Resolution: 4096x 096; Light Transmission:90%～92%
Protection
Vandalism proof, antirust, anti-acid, anti-dust
Surface Hardness
Mohs
Touch force
<100g; Response Time:16ms; Agency Approval:CE, FCC
Impact protection
Withstand the impact of a 500g steel ball, dropped from a height of 1.3 meters
Interface:
USB
Power supply
(over USB)
MTBF
>50000 hrs
Enclosure
Type of enclosure
Durable all-steel enlcosure
Type of paint
Powder coated front, powder coated steel back covers
Style
Ergonomically sleek and smart design
-
Easy to install and operate with internal drawers
Ventilation
Internal fans for ventilation
Protection
Security mechanic locks
Environment
Moistureproof,Antirust,Anti-acid,Static free
Wheels
(optional)
Audio
AUDIO
Stereo amplified speakers: dual channel 5W8Ohm
