👉 Super Slim Touchscreen Self-service Kiosk
T6 is a super slim touchscreen self-service kiosk
YOUR DELIVERED PRICE:
$1500
$1100
Act now to save 27%!
STOCK:
99 units available
SKU:
T6
Lead Time:
10 days
Payment:
TT
×
![Product Image]()
Click anywhere to close
Product Overview

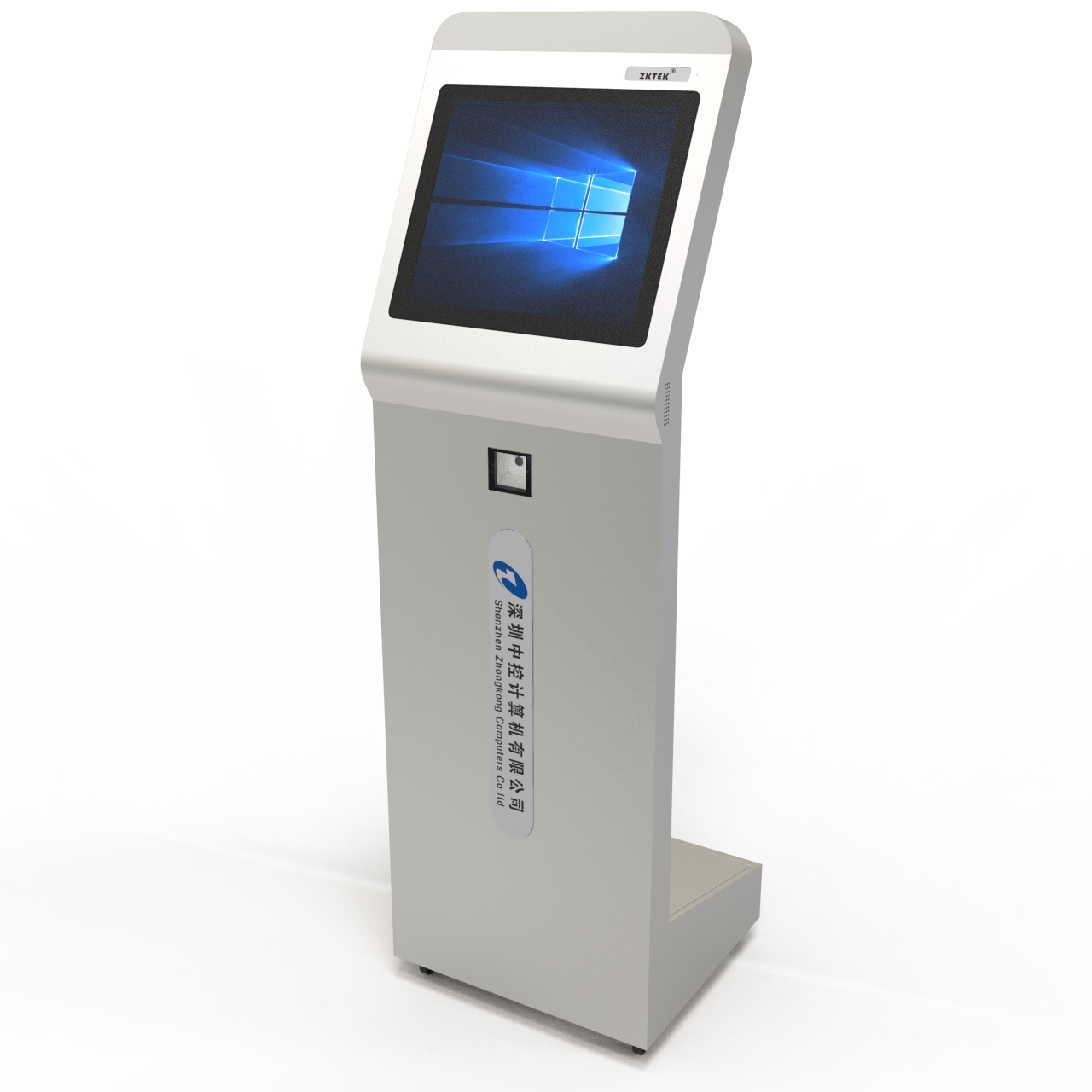

The T6 is a super slim touchscreen self-service kiosk.
Featuring cutting-edge industrial technology, a fanless industrial-grade computer, and a 17-inch touchscreen, the T6 delivers an ideal solution for on-demand self-service kiosk applications as well as other key infrastructure touchscreen kiosks applications.
Industry professionals will recognize the T6 as a dependable and trustworthy solution for demanding projects that require both reliability and sustainability.
1
LOGO plate
2
Sleek and super slim design
3
Illuminated logo area
4
With castors for movement
Technical Specifications
Dimensions
(W x H x D) 61x52x180cm/24.0″ × 20.5″ × 70.9″
Weight
52/ 95 kg
Power Supply
110-240V AC
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
Humidity Range
10% to 90% RH
Certifications
CE, FCC, RoHS
Warranty
1 Year
Material
Stainless steel/SECC
Color Options
Black, White, Silver
Detailed Information
| Group | Item | Value |
|---|---|---|
| Chassis | Mounting | Desktop / Embedded |
| Motherboard | CPU | Integrated Intel (R) i7-7500U / 2.7GHz dual-core, 4-thread, TDP 15W |
| Graphics | Integrated Intel (R) HD Graphics 620, supports 4K | |
| Memory | 2*DDR4 SODIMM slots, 2133MHz, up to 32GB | |
| Front Panel IO | Power | 1*Power button, 1*one-key restore, 1*AC loss (power-on boot DIP switch) |
| LED | 1*Power LED, 1*HDD LED | |
| USB | 3*USB2.0, 1*internal USB2.0 | |
| Terminal | 1*12-pin (4 in / 4 out GPIO, switch, 5V) | |
| PS2 | 1*PS/2 | |
| SIM | 1*SIM slot | |
| Power Requirements | Product Power Consumption | 100W |
| Power Type | External power adapter or open-frame power supply | |
| Input Voltage | 9V~36V wide input | |
| Output Power | 60W~180W | |
| Rear Panel IO | Display | 1*VGA (1920x1200@60Hz), 1*HDMI1.4 (4096*2304@24Hz) |
| LAN | 3*Intel (R) I210AT Gigabit NICs, supports Wake-on-LAN, PXE | |
| USB | 4*USB3.0 | |
| COM | 6*RS232/485 DB9, COM5-6 supports CAN output (requires CAN module) | |
| Audio | 1*Line out, 1*MIC | |
| Power | 1*DC power jack or 1*3-pin terminal, supports 9~36V input | |
| Storage | SATA | 1*2.5-inch drive bay |
| mSATA | 1*mSATA | |
| Storage Temperature | -20C to 70C | |
| Product Storage Temp Min | -10°C | |
| Product Storage Temp Max | 60°C | |
| Expansion | Mini PCIe | 1*Mini PCIe, supports 4G module |
| M.2 | 1*M.2/WiFi, Key-E 2230, WiFi module | |
| System Support | Microsoft Windows | Windows 7 |
| Linux | Ubuntu | |
| Watchdog | Hardware watchdog reset (256 levels, 0-255 seconds) | |
| Connectivity | Product Usb Ports | USB 3.0 x2, USB 2.0 x4 |
| Product Wireless | WiFi 6 (802.11ax) | |
| Product Video Output | HDMI 2.1 | |
| Performance | Product Operating Voltage | 110-240V AC |
| Product Operating Frequency | 50-60Hz | |
| Product Noise Level | < 35dB | |
| Packaging | Product Packaging Type | Standard Box / Custom Box |
| Product Eco Friendly | Recyclable packaging | |
| Environment | Operating Temperature | -10C to 50C |
| Relative Humidity | 5%-95% RH, non-condensing | |
| Operating Vibration | 0.5g rms / 5-500Hz / random / operating | |
| Environmental | Product Humidity Rating | 10% - 90% RH |
| Product Operating Temp Min | 0°C | |
| Product Operating Temp Max | 50°C | |
| Availability | Product Availability | In Stock |
| Product Lead Time | 10-30 Business Days | |
| Product Shipping Weight | 95 kg | |
| Product Shipping Dimensions | 61x52x180cm | |
| Product Dimensions | 45x40x140cm | |
| Additional Information | Product Origin Country | China |
| Compliance & Certifications | Product Ce Mark | Yes |
| Product Fcc Cert | Yes | |
| Product Rohs Compliant | Yes | |
| Product Iso Cert | ISO 9001:2015 | |
| Product Compliance Docs | Available upon request | |
| Product Interference Rating | Class A | |
| Product Network Interface | Gigabit Ethernet/WIFI/4G | |
| Product Audio Interface | 3.5mm Audio Jack | |
| Product Included Accessories | Power cable, Documentation, Drivers CD | |
| Product Optional Accessories | Extended warranty, Carrying case | |
| Product License | Perpetual / Annual | |
| Physical | Product Material | Stainless steel/SECC |
| Product Color | Black/White/Silver | |
| Product Finish | Matte / Glossy | |
| Product Weight | 0 kg | |
| Warranty & Support | Product Warranty Coverage | Parts & Labor |
| Legal | Product Return Policy | See terms of use |
| Product Legal Disclaimer | See terms of use |
Ordering Information
Lead Time:
10 days
Payment Terms:
TT
Bulk Discounts
- 10-50 units: 5%
- <100 units: 15%
- <1000 units: 20%
Delivery Options
- Sea freight/DDP(All in)
- Air freight/DDP(All in)
- Express/DDU(Tarrif excluded)
Variants
| No. | Model | Technology | Resolutions | Configurations | Arch. | GPIO | NET | COM | HDMI | VGA | USB | Power |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | C5760Z-R6 V2.0(5020U) | I3-5020U/2.0GHz | 1*SODDR3L | C43_I326D | C58-R6/C68-G12/C68-HM | 4 in / 4 out | 3 | 6 | 1 | 1 | 7 | 9~36V |
Notes
- 1) One-key restore and reset button are mutually exclusive. Default is one-key restore. Some CPUs do not support it. Contact FAE if reset is required; hardware change needed.
- 2) With C43 motherboard, the internal USB2.0 and 4G are mutually exclusive. Default is 4G.
Technical Documentation
Shipping Information
Weight:
95 kg kg
Dimensions:
61x52x180cm cm
Shipping Class:
Oversized
Free Shipping Threshold:
$10000
Special Handling Instructions
- No battery(no shipment safety concerns)
- Over weight >95KG per package
- HS CODE: 847160
