ZKTEK provides all kinds of custom OEM/ODM ATM,interactive kiosk,information kiosk, touchscreen kiosk, touchscreen monitor, touchscreen computer, box ipc,digital sginages, pos and metal keyboard products

Model: A16

  • Linux Ready
  • RFID
  • 3G connection is used to connect the kiosks with the internet wireless.
  • Chip cards/IC cards are used for store the sensitive information of the bank account.
  • EPP are the encrypted PINpads which are used for the protect the PIN entry when the passwords are encrypted.
  • Web based internet access is used for the applications developped based on web browse and websites.
  • Thermal printer is used to provide high speed receipt and other transaction-related slips.
  • Camera, also as PIN hole camera, is used for the survillance that provides the video record of the environment near the kiosks.
  • Cash validation is a very useful function for the kiosks to collect the money for the services.
  • Handicapped kiosk are specially designed for the handicapped person.
  • The UPS is the backup power supply for the kiosks especially used for payment transaction.
  • Rugged kiosk is used for the applications which needs high quality kiosks.
  • Privacy film is used to protect the display screen for sensitive information of service.
  • Multitouch is the touchscreen with the multi touch points simultaneously.
  • Projective capacitive touch or projective-capacitance touch screen is the technology that use the reflective technology to install the capacitive sensors on the rear side of the touchscreen, and makes the touchscreen absolutely isolated from the environment interference.

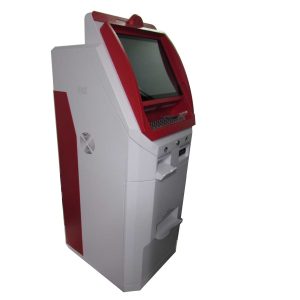

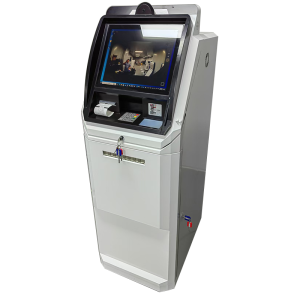

A16 touchscreen cash and bill payment kiosk for card dispensing and tickets vending
A16 touchscreen cash and bill payment kiosk for card dispensing and tickets vending

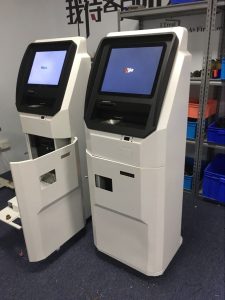

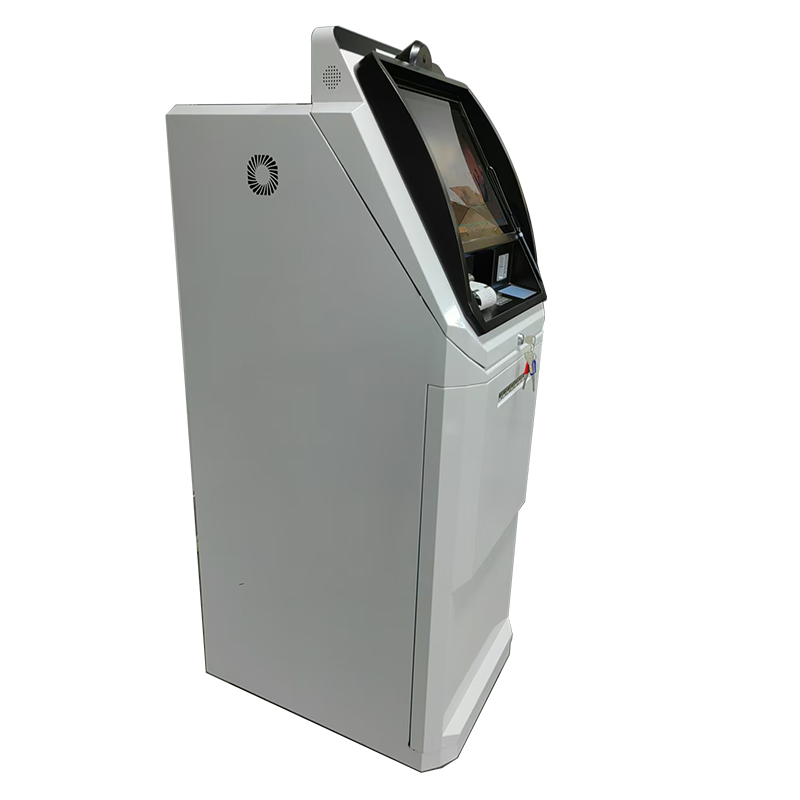

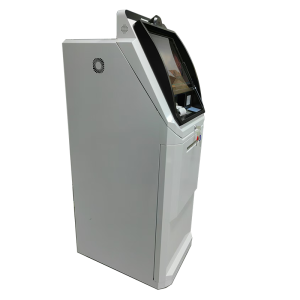

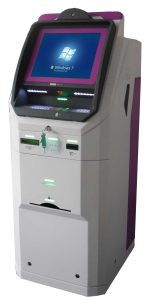

A16 is a selfservice touchscreen payment & ticket kiosk with cash validator, photo printer, receipt printer, EPP, credit/debit card reader, barcode reader, UPS and more

MAIN FEATURES

  • Linux Ready

    Linux is a set of free Unix operating system, which is based on and similar to POSIX and UNIX.

  • RFID

    WHAT IS RFID? RFID stands for Radio Frequency IDentification, a technology that uses tiny computer chips smaller than a normal size bank card.

  • 3G

    3G connection is used to connect the kiosks with the internet wireless.

  • Chips

    Chip cards/IC cards are used for store the sensitive information of the bank account.

  • EPP

    EPP are the encrypted PIN pads which are used for the protect the PIN entry when the passwords are encrypted before sent into the PC.

  • Internet

    Web based internet access is used for the applications developped based on web browse and websites.

  • Thermal printer

    Thermal printer is used to provide high speed receipt and other transaction-related slips.

  • Camera

    Camera, also as PIN hole camera, is used for the survillance that provides the video record of the environment near the kiosks.

  • touchscreen

    Touchscren is well known high-tech electronics, A touchscreen is an electronic visual output that can detect the presence and location of a touch within the display area.

  • Cash

    Cash validation is a very useful function for the kiosks to collect the money for the services.

  • Handicapped

    Handicapped kiosk are specially designed for the handicapped person.

  • UPS

    The UPS is the backup power supply for the kiosks especially used for payment transaction.

  • Rugged kiosk

    Rugged kiosk is used for the applications which needs high quality kiosks.

  • Privacy film

    Privacy film is used to protect the display screen for sensitive information of service.

  • Multitouch

    Multitouch is the touchscreen with the multi touch points recognition simultaneously.

  • Projective capacitive touch

    Projective capacitive touch, also as projective-capacitance touch screen is the technology that use the reflective technology to install the capacitive sensors on the rear side.

  • The A16 is an automated self service payment and ticket kiosk including one 17/19" touchscreen for all kinds of applications. With a bulky enclosure of high reliability  cash validator, photo printer, receipt printer, EPP, credit/debit card reader, barcode reader, UPS and a lot of more useful device combo, A16 is the versatile kiosk for all kinds of payment and ticket applications.

    As the most popular model, A16 has been developed into several sub-models for the project-oriented solutions. By adopting the most up-to-date technology and powerful high performance industrial computer for 24/7 use, The bulky touch screen kiosk is design to cater the increasing demand of the bank payment, hotel checkin, museum card dispensing, supermarket customer service, photo printing shop, theater ticket vending, library book recycle and other indoor places for the featured easy-to-use operate account management kiosks. The bank owners will benefit from the multi-functional ways to quickly and conveniently manage the account and print the bank pass book with the high reliability kiosk solution in compact and sturdy design at a reasonable cost.

    Now, A16 features the most latest technologies:

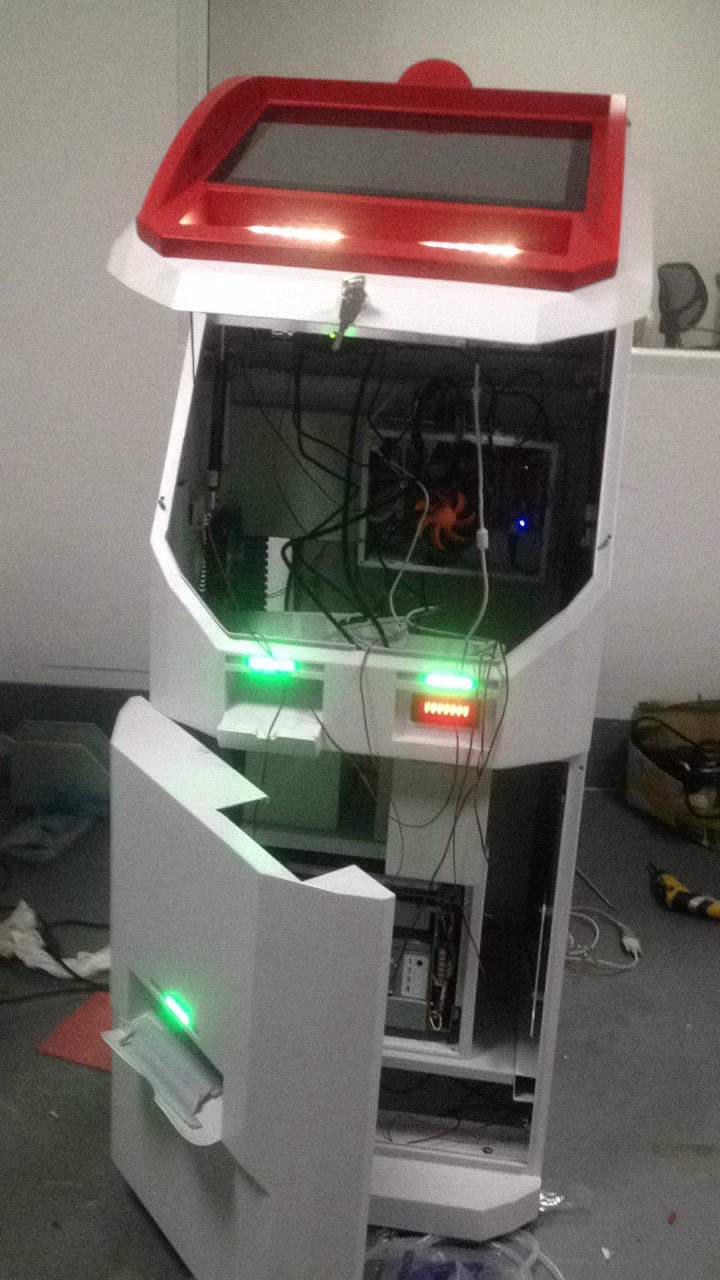

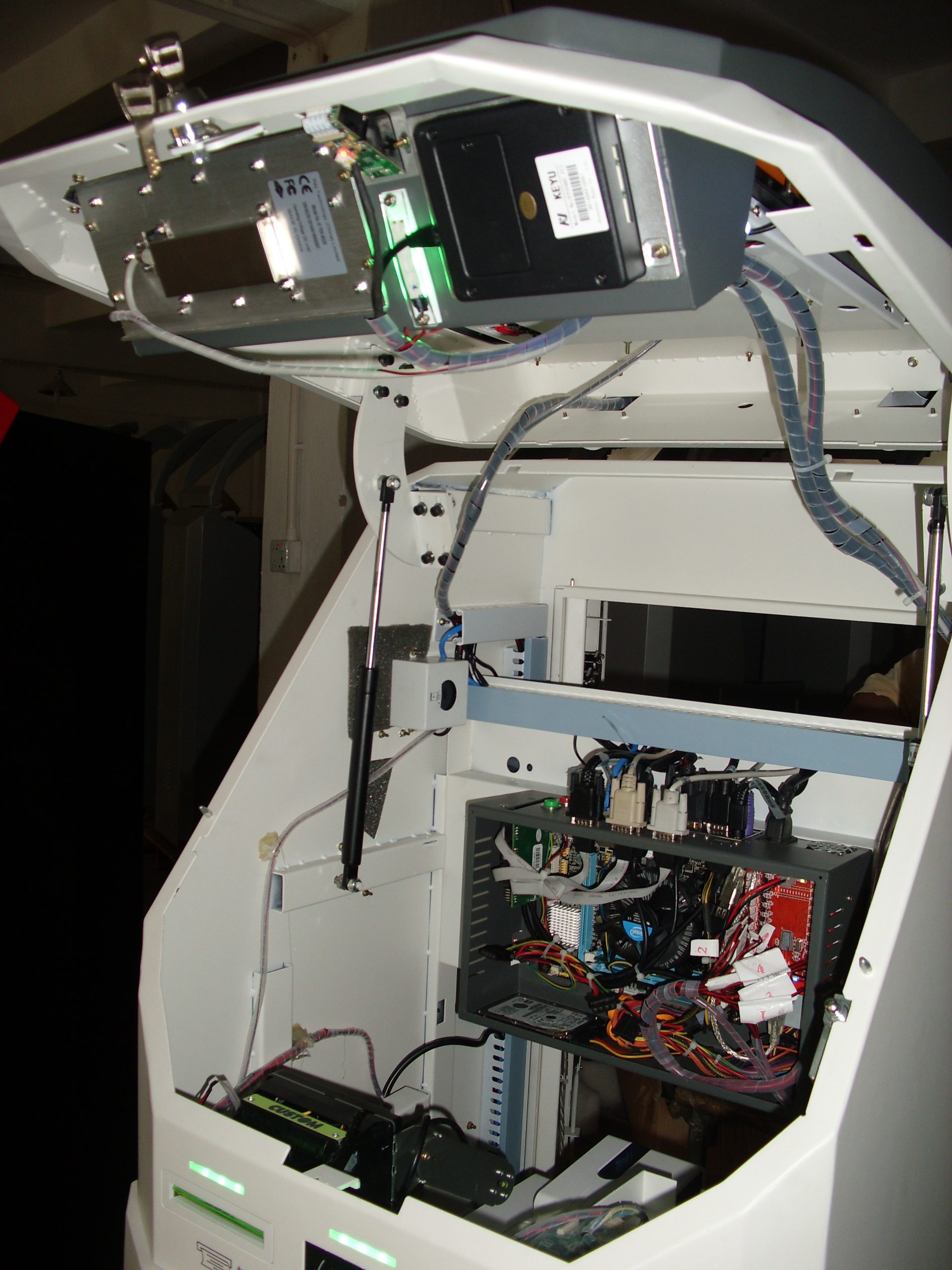

    •  Easy to use design with air-spring and drawers
    •  The complete clean and smooth front interface with projective capacitive touchscreen monitors(optional)
    •  The state of art design and good finishing of outlook surface
    •  High reliable industrial computer with the latest HASWELL server technology
    •  Embedded high-speed high-reliability cash acceptor
    •  Hybrid motorised 3-in-1 bank card reader

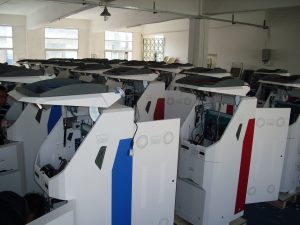

    •  Optional dye-sublimation photo printer
    •  Optional SIM socket for cellular radio 4G/LTE connectivity
    •  Optional bulky components such as change giver and A4 laser printer for list printing

    A16 is the accoutable solution for the high foot traffic and high quality service banks in 24/7 work-time. With ZKTEK, you will have the tools and support you need for a successful self service automated bank kiosk.

    OEM/ODM/BRANDING are also welcome.

    Applications:

    • Billing Kiosk
    • Marketing Kiosk
    • Music Download Kiosk
    • Multimedia Kiosk
    • On-Line Banking Kiosk
    • Order Entry Kiosk
    • Bespoken Kiosk



    • Prepaid Kiosk
    • Redemption Kiosk
    • Retail Kiosk
    • Security Kiosk
    • Self-Service Kiosk
    • Ticketing Kiosk
    • Tourism Kiosk



    • Trade Show Kiosk
    • Payment Kiosk
    • Check In Kiosk
    • Custom Kiosks
    • Directory Wayfinder Kiosk
    • Employee Self-Service Kiosk
    • Gaming Kiosk



    • Gift Registry Kiosk
    • HR Kiosk
    • Identification Verification Kiosk
    • Information Kiosk
    • Interactive Kiosk
    • Internet Kiosk
    • Internet Pay For Use Kiosk



    • Kiosk OEM
    • Kiosk ODM



  • Configurations

    • Payment kiosk with bill acceptor, barcode scanner and box IPC Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-X1265LV3 CPU Intel XEON E3-1265L V3.0 , quad core 3.7GHz, 5GT/s FSB
      Video core Integrated Intel?HD Graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5" hard driver)
      Coin Mechanism NRI C2 Type of mechanism 16 way coin mechanism
      Capacity 6 Channels tube
      Protocol MDB
      Power 24V DC input
      Interface RS-232 / USB
      LCD LG L173L Type 17 inch TFT LCD
      Brightness 300cd/m2
      Contrast 2000:1
      Max(native). resolution 1024*768
      Response Time 6ms
      Dot pitch 0.197
      Interface LVDS,VGA or DVI
      Touchscreen ZKTEK C1710C Type 17 inch capacitive touchscreen
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      - antirust, anti-acid, anti-dust
      Thickness 6mm
      Resolution 4096x1096
      Light Transmission 90%-92%
      Surface Hardness Mohs
      Touch force <100g
      Response Time 16ms
      Interface USB
      Thermal Printer CUSTOM TG2480H Printer Type Themal Printer,
      Paper width 80mm
      Paper roll diameter 180mm
      Paper thickness 60 to 120g/m2
      Print Speed 220mm/s
      Print resolution 203 dpi (8 dots/mm)
      Sensors Automatic cutter only;out alarm/to be run out alarm,Jam
      Power supply 24VDC5A
      Interface RS232 / USB / Ethernet
      Card Reader CREATOR CRT310 Type Hibrid motorised automatic card reader:magnetic, smart IC card and RFID
      - With shutter(optional)
      Magnetic card ISO/IEC 7811 JIS X6301/6302 tr1&2&3 read
      IC card ISO/IEC 7816 JIS X6303 read/write
      RFID(contactless) card ISO 7816 read/write
      - ISO/IEC 15693(NFC)
      Standards EMV Ver.4.0 compliant for IC and magnetic card
      Interface USB/RS-232
      Metal EPP ZKTEK MKP2910 Type 3DES encrypted EPP
      - Waterproof 16 keys stainless steel metal keypad
      Keys laser print or chemical etch keys filled with color ink
      Super durability over 2,000,000 times with 0.45mm knock gap
      Press strength 2N with temperature range -40℃~65℃
      Standards Compatible with CE, RoHS, FCC
      Interface RS-232 + USB or USB
      Bill Acceptor MEI SCL83 Bill validation width 62-85mm(W)
      Validation rate 98% or greater
      Validation speed Approximately 3 seconds to stack
      Note insertion directions Note Insertion - up to 46 notes
      Validation scan scans 100% of both faces of each bill using six wavelengths
      Cassette Up to 1200 street-grade notes(SCL83)
      Bezel Options General
      Escrow One note
      Language protocol EBDS
      Operation temeprature 0-60 Cel
      Operation humidity 5%-95%
      Gross weight(with cashbox) 5.5KG
      Interface RS232
      Power Supply 12V to 24V dc
      Note Feeder MEI BNF Model name Bunch Note Feeder
      Bunch Number 50 notes in bulk
      Acceptance rate Feed 99% or greater
      Acceptance speed Upto 2.5 seconds(coordinated by the bill validator)
      Usage With a BNF, users can deposit cash into the system quickly with less frustration.
      Bezel Options Standard II (83mm or 85mm)
      Camera ZKTEK PHC1 Camera Type CMOS
      Resolution 2MP active pixels
      Functions Auto-focus
      Interface USB2.0 High Speed(EHCI)
      OS Microsoft Windows 7 Ult 64bit Version Windows 7 Ult
      - 64bit
      Power Supply ZKTEK HF150 Power rate 150W
      Power output 24VDC5A
      Power input 100/240V AC @2A
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
      Enclosure ZKTEK A Type of enclosure Wall through durable all-steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free

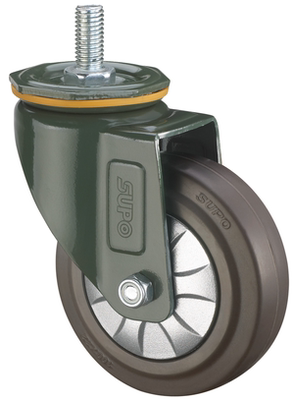

      Wheels (optional)
      UPS SANTAK K1000PRO Voltage range 170V~255VAC
      Power Rate 1000VA/600W
      Capacity 12VV/60WX1
      Transfergap 6ms;
      Overload power 1000W
      Self-protection overload protection;Error led alert; RJ45/RJ11
      Interface USB/RS-232

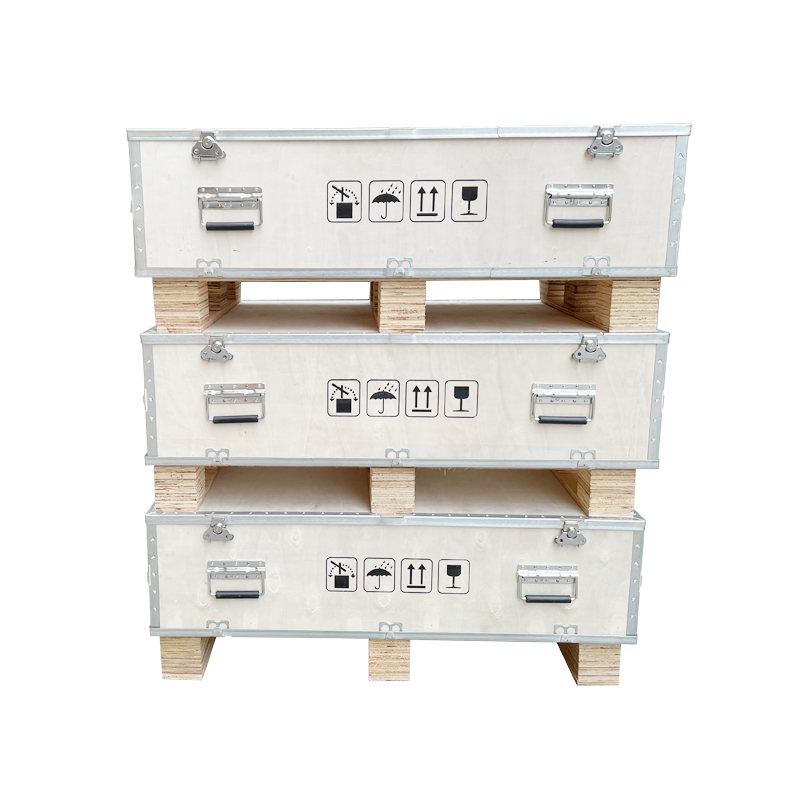

      Package ZKTEK Crate Material Plywood crate
      Wrapper Film
      Foam (only corners)
    • Barcode ticket kiosk with 2D barcode scanner N5680 Specifications

      Name Model Item Parameter
      Host PC ZKTEK TN-X1265LV3 CPU Intel XEON E3-1265L V3.0 , quad core 3.7GHz, 5GT/s FSB
      Video core Integrated Intel?HD Graphics graphic card support 1920*1080 full HD
      RAM 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB)
      Storage 2* Serial ATA II, support 3Gb/s
      - 500G HDD(legacy 2.5" hard driver)
      Touchscreen ZKTEK C1710S Type 17 inch SAW touchscreen
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      - antirust, anti-acid, anti-dust
      Thickness 6mm
      Resolution 4096x1096
      Light Transmission 90%-92%
      Surface Hardness Mohs
      Touch force <100g
      Response Time 16ms
      Interface USB
      LCD LG L173L Type 17 inch TFT LCD
      Brightness 300cd/m2
      Contrast 2000:1
      Max(native). resolution 1024*768
      Response Time 6ms
      Dot pitch 0.197
      Interface LVDS,VGA or DVI
      Touchscreen ZKTE C1910C Type 19 inch capacitive touchscreen
      Durability Scratch-free,More than 35,000,000 touches in one location without failure
      - antirust, anti-acid, anti-dust
      Thickness 6mm
      Resolution 4096x1096
      Light Transmission 90%-92%
      Surface Hardness Mohs
      Touch force <100g
      Response Time 16ms
      Interface USB
      Label Printer ZKTEK TSC240 Printer type Desktop thermal label and 1D &2D barcode printer
      Printer mode Thermal and thermal transfer
      Paper roll 5"(127mm) max
      Paper roll core diameter 1.0 "(25.4mm)~1.5"(38mm)
      Paper thickness 0.003"(0.8mm)~0.007"(0.18mm)
      Print width 25-108mm(1-4.25") ;
      Print length 991mm; rail size: 0.585"(15mm)
      Print Speed 6.0" (152 mm)/sec
      Resolution 203 dpi ,
      Language TSPL and ZPL
      Power 100-240 VAC,50-60 Hz
      Interface USB/LAN/RS232/LPT optional
      Dotmatrix Printer ZKTEK P76T Printer type Dotmatrix stylus rinter
      Width 76mm
      Paper roll diameter 160mm
      Print Speed 80mm/s
      Sensors Automatic cutter;out alarm/to be run out alarm,Jam
      Temperature 5-35C
      RH 15%-85% NC
      Reliability MTBF>=10000
      MTTR <=30min
      Compatibility Support IBM and OKI simulation
      Interface LPT,RS232 or USB
      Barcode Scanner HONEYWELL N5680 Decoding capability Read almost all formats of 1D and 2D barcode
      Scan width(degree) +/-40 degree Scan angle: 360 degree Movement tolarence
      Minimium size 6.60 mil (PDF 417)
      Interface RS232/USB
      Power supply 5V or over USB
      Brand HONEYWELL
      Movement tolarence 4 inch/second
      OS Microsoft Windows 7 Ult 64bit Version Windows 7 Ult
      - 64bit
      Enclosure ZKTEK A Type of enclosure Wall through durable all-steel enlcosure
      Type of paint Powder coated front, powder coated steel back covers
      Style Ergonomically sleek and smart design
      - Easy to install and operate with internal drawers
      Ventilation Internal fans for ventilation
      Protection Security mechanic locks
      Environment Moistureproof,Antirust,Anti-acid,Static free
      Wheels (optional)
      4G HUAWEI ME909u-521 Band type FDD LTE Embedded Module
      Interface Mini PCIe
      Handset ZKTEK HS1 Handset type Vandalism-resistance handset with metal cable
      - With fork
      UPS SANTAK K1000PRO Voltage range 170V~255VAC
      Power Rate 1000VA/600W
      Capacity 12VV/60WX1
      Transfergap 6ms;
      Overload power 1000W
      Self-protection overload protection;Error led alert; RJ45/RJ11
      Interface USB/RS-232
      Camera ZKTEK PHC1 Camera Type CMOS
      Resolution 2MP active pixels
      Functions Auto-focus
      Interface USB2.0 High Speed(EHCI)
      Audio ZKTEK AUDIO5W AUDIO Stereo amplified speakers: dual channel 5W8Ohm
      Package ZKTEK Crate Material Plywood crate
      Wrapper Film
      Foam (only corners)
  • Downloads

  • News

Leave a message:

Feed back

*
*


*

By tick this checkbox, I agreed to receive the information regarding this message from ZKTEK by any means.
By tick this checkbox, I agreed to the Terms of use of ZKTEK.*
