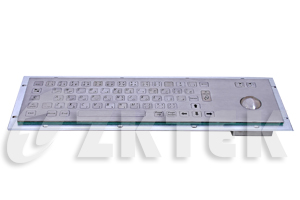

MKT2661 392x110 mm metal keyboard for kiosk and industrial computer

Model: MKT2661

MKT2661 392x110 mm metal keyboard for kiosk and industrial computer
MKT2661 392x110 mm metal keyboard for kiosk and industrial computer

MKT2661 392x110 mm metal keyboard for kiosk and industrial computer

Priced from: $650

MAIN FEATURES

  • Linux Ready

    Linux is a set of free Unix operating system, which is based on and similar to POSIX and UNIX.

  • Outdoor

    Outdoor kiosks are used out door with some kinds of IP protection for explosure to sun light and other weather conditions.

  • Fanless

    A fanless box IPC is a computer that uses a passive cooling system to dissipate heat, instead of an internal fan which will generate new problem when solved one or not.

  • Linux Ready
  • Outdoor kiosks are used out door with some kinds of IP protection for explosure to sun light and other weather conditions.
  • Fanless
  • MAIN FEATURES:



    • Braille Keytops model AVAILABLE.
    • Multi keys press down simultaneously without conflict(4 keys)
    • Most Popular Keylayout
    • IP65 Protected if sealed to front plate
    • Various Layouts Available:
      • Language: US English, UK English, Russian, French, German, Spanish, Italian, Turkish, Arabic, Thai and Japanese layouts optional
      • Key layouts: QWERTY, MALT or DVORAK layouts optional.
    • Front Plate: Super quality brushed stainless steel.
    • Carbon + Gold Material Contact Dome
    • Long Key Lifespan >2 million actuations.
    • Interface Variaty: PS2, RS232, USB available.
    • OS compatibility:
      • PS2/RS232: Win NT4, 98SE, 98ME, 2000, XP;
      • USB: Win 98SE, 98ME, 2000, XP, VISTA, WINDOWS 7, LinuX, Ubuntu, FreeBSD and Mac OS9 / OSX.



    MECHANICAL DATA

    • Key: 65keys, super quality brushed stainless steel.
      • US English, UK English, Russian, French, German, Spanish, Italian, Turkish, Arabic, Thai and Japanese layouts optional
      • QWERTY, MALT or DVORAK layouts optional.
    • Key top style: Protuberant Trimed-Rectangle keys, with laser engraved and etched legends and raised braille on keys are available.
    • Key Size: Trimed 14mm x 14mm for normal keys, 14mm x 28mm for enter key, 14mm x 100mm for space bar.
    • Key travel: 2.50mm.
    • Tracker ball: 38mm (1.5' ) diameter, Resolution 440 edges/revolution.Black Phenolic Trackballs are available.
    • Switch life: more than 2 million of operations.
    • Actuation Force: 1N+/-0.1N for key 16mm diameter (pressure point),2N+/-0.1N for key 14mm x 28mm (pressure point).
    • Mounting Rack: Aluminum alloy.
    • Front Plate: Super quality brushed stainless steel.
    • Lettering: Sunk laser legends & characters in high quality ink.
    • Actuator/keys materials: stainless steel.
    • G.W. 1.80KGs.
    • Dimensions: 392.0mm x 110.0mm (faceplate),416.0mm x 134.0mm (baseplate).



    ELECTRICAL DATA

    • Supply Voltage: +5V DC +/-5%.
    • Current Rating: appr. 20mA.
    • EMC Standard: It is compliance with the council EMC directive 89/336/EEC,EN55022: 1988+A1:2000+A2:2003,EN55024: 1988+A1:2001+A2:2003.
    • Emission EN 50081-1.
    • Immunity: EN 50082-1.
    • Lifespan > 5 years.
    • Contact Material: Carbon / Gold.
    • Interface: PS2, RS232, USB available.
    • OS: PS2/RS232: Win NT4, 98SE, 98ME, 2000, XP;USB: Win 98SE, 98ME, 2000, XP, VISTA, WINDOWS 7, LinuX, Ubuntu, FreeBSD and Mac OS9 / OSX.



    ENVIRONMENTAL ADAPTABILITY

    • Operating temperature:-10C to +60C.
    • Storage temperature: -20C to +70C.
    • Operating RH: 30-90%.
    • Atmospheric pressure: 60-106Kpa.
    • Saline mist: 96 hours, IEC 60512-6.
    • Damp heat test at + 40C: 21 days, IEC 60512-6.
    • Dry heat test at + 85C: 10 days, IEC 60512-6.



    RELIABILITY

    • RoHS  Compliant, CE and FCC.
    • Protection Level: IP65.
    • Vandal resistant: IK07.
    • Key Lifespan >2 million actuations.
    • MTBF >40000H.
    • MTTR <30min.



  • Configurations

    • keyboards: MKT2661 Specifications

      Item Parameter
      Type 64Keys stainless steel metal leyboard with trackball(IP65 NEMA 4X);
      Dimensions 392.0mm x 110.0mm (faceplate),416.0mm x 134.0mm (baseplate).
      Trackball Diameter 38mm
      Lettering Sunk laser legends & characters in high quality ink
      Switch life more than 2 million of operations
      Standards Compatible with CE, RoHS, FCC
      Layout Internet -English(EN04), customizable for all languages
      Interface USB
