Model A1
What is this product?

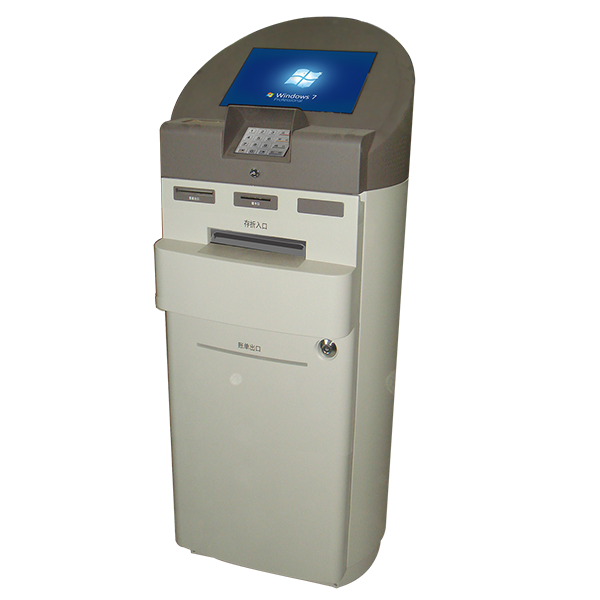

A1 self service bank passbook printing and list printing touchscreen bank payment kiosk
A1 is a selfservice touchscreen bank pass and list printing kiosk for payment. It has all the component for the banking services: bank pass printing, list printing, invoice printing(optional)
A1 is a selfservice touchscreen bank pass and list printing kiosk for payment. It has all the component for the banking services: bank pass printing, list printing, invoice printing(optional) and bank card payment as...
20+Years
ISOQuality
GlobalExport
OEMProjects
Linux Ready
WIFI
Thermal printer
Camera
01Identify
02Engineer
03Manufacture
04Qualify
05RFQ
Drag to inspect
Industrial
QC
OEMWhy is it different?
Engineered advantages.
Evidence-based differentiation — not marketing claims.
-
Linux ReadyLinux is a set of free Unix operating system, which is based on and similar to POSIX and UNIX.
-
WIFIWiFi is a networking technology that allows devices to communicate without wires.
-
Thermal printerThermal printer is used to provide high speed receipt and other transaction-related slips.
-
CameraCamera, also as PIN hole camera, is used for the survillance that provides the video record of the environment near the kiosks.
-
touchscreenTouchscren is well known high-tech electronics, A touchscreen is an electronic visual output that can detect the presence and location of a touch within the display area.
Is it well designed?
Inspect the engineering.
Rotate the product. Examine structure, finish, and assembly quality.
Surface finishPowder coat or stainless grade per deployment.
Structural strengthReinforced chassis for 24/7 operation.
Precision machiningCNC-formed panels with controlled tolerances.
Cable managementServiceable routing for field maintenance.
Drag to rotate · Scroll for detail callouts
Will this solve my problem?
Built for your environment.
Real deployment scenarios across regulated and high-traffic industries.
Government
Public service halls & civic terminals
Healthcare
Patient check-in & wayfinding
Retail
Self-ordering & information points
Factory
Industrial HMI & line-side displays
Banking
Branch automation & secure terminals
Transportation
Ticketing & passenger flow
Can they actually manufacture it?
Inside the factory.
A1 is a selfservice touchscreen bank pass and list printing kiosk for payment. It has all the component for the banking services: bank pass printing, list...
01Laser Cutting
02CNC Punching
03CNC Bending
04Welding
05Grinding
06Powder Coating
07Assembly
08Testing
09Packaging
Sheet metal laser cutting for enclosure panels.
01
Laser Cutting
Factory stage · edit gallery in /y/a/k.php
Laser Cutting
Can they customize it?
Configure your build.
OEM/ODM modules selected to match your project specification.
Select modules to preview your configuration.
Ticket kiosk configuration available — see technical evidence below.
How do they ensure quality?
Quality is documented.
Inspection at every stage — evidence your quality team can review.
Incoming inspectionMaterial and component verification before production.
In-process inspectionCheckpoint controls during assembly and wiring.
Final inspectionFunctional burn-in and cosmetic audit before shipment.
Measurement equipmentCalibrated tools for dimensional and electrical tests.
Quality standardsISO-aligned quality system with traceable records.
CertificatesView certifications for compliance review.
- IQC · IPQC · FQC
- Inspection reports available
- Traceable batch records
Can they deliver?
Production at scale.
Export-ready manufacturing with predictable lead times and worldwide logistics.
20+Years experience
OEMGlobal partnerships
ISOCertified facility
WorldwideExport & support
- Container loading & export documentation
- Production capacity planning for batch orders
- Lead time communication throughout project
- Global technical support network
What happens after purchase?
Long-term partnership.
Support structured for enterprise deployment and continuity.
- Warranty coverage
- Technical documentation
- RMA & replacement parts
- Remote assistance & training
- Engineering change support
- Maintenance planning
I'm ready.
Request quotation.
You have inspected the product, reviewed manufacturing, and validated quality. Reach our sales team directly — live chat or email.
Typical response within 2–4 hours during business days.
Introduction
A1 is a selfservice touchscreen bank pass and list printing kiosk for payment. It has all the component for the banking services: bank pass printing, list printing, invoice printing(optional) and bank card payment as well as receipt printing for it.
With a decent industrial grade host computer, it features a fast working kiosk in bank environment which is always air-conditioned. It has adopted the industrial computer for optimizing the total cost of ownership and provide a faster CPU with low budget for banks.
A1 also features a perfect design on the footprint. The size is very small, and it can place almost every where in the bank without worry about the footprint of the kiosk.
OEM/ODM is also welcome.
Applications:
- Payment
- Bank pass printing
- List printing
- Information
- Service
Configurations & specifications
Barcode ticket kiosk with 2D barcode scanner N5680 — Ticket kiosk
| Item | Parameter |
|---|---|
| CPU | Intel XEON E3-1265L V3.0 , quad core 3.7GHz, 5GT/s FSB |
| Video core | Integrated Intel?HD Graphics graphic card support 1920*1080 full HD |
| RAM | 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB) |
| Storage | 2* Serial ATA II, support 3Gb/s |
| - | 500G HDD(legacy 2.5" hard driver) |
| Type | 17 inch SAW touchscreen |
| Durability | Scratch-free,More than 35,000,000 touches in one location without failure |
| - | antirust, anti-acid, anti-dust |
| Thickness | 6mm |
| Resolution | 4096x1096 |
| Light Transmission | 90%-92% |
| Surface Hardness | Mohs |
| Touch force | <100g |
| Response Time | 16ms |
| Interface | USB |
| Type | 17 inch TFT LCD |
| Brightness | 300cd/m2 |
| Contrast | 2000:1 |
| Max(native). resolution | 1024*768 |
| Response Time | 6ms |
| Dot pitch | 0.197 |
| Interface | LVDS,VGA or DVI |
| Type | 19 inch capacitive touchscreen |
| Durability | Scratch-free,More than 35,000,000 touches in one location without failure |
| - | antirust, anti-acid, anti-dust |
| Thickness | 6mm |
| Resolution | 4096x1096 |
| Light Transmission | 90%-92% |
| Surface Hardness | Mohs |
| Touch force | <100g |
| Response Time | 16ms |
| Interface | USB |
| Printer type | Desktop thermal label and 1D &2D barcode printer |
| Printer mode | Thermal and thermal transfer |
| Paper roll | 5"(127mm) max |
| Paper roll core diameter | 1.0 "(25.4mm)~1.5"(38mm) |
| Paper thickness | 0.003"(0.8mm)~0.007"(0.18mm) |
| Print width | 25-108mm(1-4.25") ; |
| Print length | 991mm; rail size: 0.585"(15mm) |
| Print Speed | 6.0" (152 mm)/sec |
| Resolution | 203 dpi , |
| Language | TSPL and ZPL |
| Power | 100-240 VAC,50-60 Hz |
| Interface | USB/LAN/RS232/LPT optional |
| Printer type | Dotmatrix stylus rinter |
| Width | 76mm |
| Paper roll diameter | 160mm |
| Print Speed | 80mm/s |
| Sensors | Automatic cutter;out alarm/to be run out alarm,Jam |
| Temperature | 5-35C |
| RH | 15%-85% NC |
| Reliability | MTBF>=10000 |
| MTTR | <=30min |
| Compatibility | Support IBM and OKI simulation |
| Interface | LPT,RS232 or USB |
| Decoding capability | Read almost all formats of 1D and 2D barcode |
| Scan width(degree) | +/-40 degree Scan angle: 360 degree Movement tolarence |
| Minimium size | 6.60 mil (PDF 417) |
| Interface | RS232/USB |
| Power supply | 5V or over USB |
| Brand | HONEYWELL |
| Movement tolarence | 4 inch/second |
| Version | Windows 7 Ult |
| - | 64bit |
| Type of enclosure | Wall through durable all-steel enlcosure |
| Type of paint | Powder coated front, powder coated steel back covers |
| Style | Ergonomically sleek and smart design |
| - | Easy to install and operate with internal drawers |
| Ventilation | Internal fans for ventilation |
| Protection | Security mechanic locks |
| Environment | Moistureproof,Antirust,Anti-acid,Static free |
| Wheels | (optional) |
| Band type | FDD LTE Embedded Module |
| Interface | Mini PCIe |
| Handset type | Vandalism-resistance handset with metal cable |
| - | With fork |
| Voltage range | 170V~255VAC |
| Power Rate | 1000VA/600W |
| Capacity | 12VV/60WX1 |
| Transfergap | 6ms; |
| Overload power | 1000W |
| Self-protection | overload protection;Error led alert; RJ45/RJ11 |
| Interface | USB/RS-232 |
| Camera Type | CMOS |
| Resolution | 2MP active pixels |
| Functions | Auto-focus |
| Interface | USB2.0 High Speed(EHCI) |
| AUDIO | Stereo amplified speakers: dual channel 5W8Ohm |
| Material | Plywood crate |
| Wrapper | Film |
| Foam | (only corners) |
Bank kiosk A1 self service bank pass printer and list printer payment touchscreen kiosk terminal — Bank kiosk
| Item | Parameter |
|---|---|
| CPU | Intel Celeron G3430, dual core 3.3GHz |
| Video core | Integrated Intel HD graphics graphic card support 1920*1080 full HD |
| RAM | 1*SO-DIMM(1.35V low voltage),DDR3 RAM 4GB(Max 8GB) |
| Storage | 2* Serial ATA II, support 3Gb/s |
| - | 500G HDD(legacy 2.5″ hard driver) |
| Type | 17 inch TFT LCD |
| Brightness | 300cd/m2 |
| Contrast | 2000:1 |
| Max(native). resolution | 1024*768 |
| Response Time | 6ms |
| Dot pitch | 0.197 |
| Interface | LVDS,VGA or DVI |
| Type | 17 inch capacitive touchscreen |
| Durability | Scratch-free,More than 35,000,000 touches in one location without failure |
| - | antirust, anti-acid, anti-dust |
| Thickness | 6mm |
| Resolution | 4096x1096 |
| Light Transmission | 90%-92% |
| Surface Hardness | Mohs |
| Touch force | <100g |
| Response Time | 16ms |
| Interface | USB |
| Printer Type | List Themal Printer with long duration thermal paper printing ability |
| Paper width | 80mm |
| Paper roll diameter | 120mm, retracted log paper: 120mm |
| Paper thickness | 60 to 120g/m2 |
| Print Speed | 150mm/s |
| Print resolution | 203 dpi (8 dots/mm) |
| Sensors | Automatic cutter only;out alarm/to be run out alarm,Jam |
| Power supply | 24VDC5A |
| Interface | RS232 / USB / Ethernet |
| Printer type | Dotmatrix bank pass book printer |
| Printer head lifespan | More than 400,000,000 actuations |
| Character set | All language character set optional |
| Speed | >= 460CPS |
| Cartrige dot duration | 3,000,000 times actuations |
| Temperature | 5-35C |
| RH | 15%-85% NC |
| Reliability | MTBF>=10000 |
| MTTR | <=30min |
| Compatibility | Support IBM and OKI simulation |
| Interface | LPT,RS232 or USB |
| Version | WINDOWS XP |
| Version | Windows 7 Ult |
| - | 32bit |
| Power rate | 150W |
| Power output | 24VDC5A |
| Power input | 100/240V AC @2A |
| Type of enclosure | Wall through durable all-steel enlcosure |
| Type of paint | Powder coated front, powder coated steel back covers |
| Style | Ergonomically sleek and smart design |
| - | Easy to install and operate with internal drawers |
| Ventilation | Internal fans for ventilation |
| Protection | Security mechanic locks |
| Environment | Moistureproof,Antirust,Anti-acid,Static free |
| Wheels | (optional) |
| Voltage range | 170V~255VAC |
| Power Rate | 1000VA/600W |
| Capacity | 12VV/60WX1 |
| Transfergap | 6ms; |
| Overload power | 1000W |
| Self-protection | overload protection;Error led alert; RJ45/RJ11 |
| Interface | USB/RS-232 |
| Camera Type | CMOS |
| Resolution | 2MP active pixels |
| Functions | Auto-focus |
| Interface | USB2.0 High Speed(EHCI) |
| AUDIO | Stereo amplified speakers: dual channel 5W8Ohm |
| Material | Plywood crate |
| Wrapper | Film |
| Foam | (only corners) |
